Forstman
Trailers
Forest trailers with a load capacity of up to 3.7 tons and forest cranes with a reach of 3.5 to 5.1 meters are designed for small compact tractors with 16–40 hp. Optional equipment includes hydraulic winches, 4-wheel drive systems, hydraulic stations, pumps, and more. We hope you find the perfect solution here.
800
Around machines made
17
Sold in countries around the world
2001
Manufactured since
About us
Passion-driven engineering and development
Since 2001 we’ve been designing and producing machinery with a focus on forest cranes, compact timber loaders, and small tractor attachments. Our cranes are built for efficiency, durability, and ease of use, helping operators handle forest tasks with precision. Continuous development ensures our equipment is reliable, eco-friendly, and gentle on the forest. We hope you find the perfect solution for your needs here.
Here is some information about the setups and models. If you can’t find a suitable configuration in the listing, feel free to create your own setup at the bottom of the page.

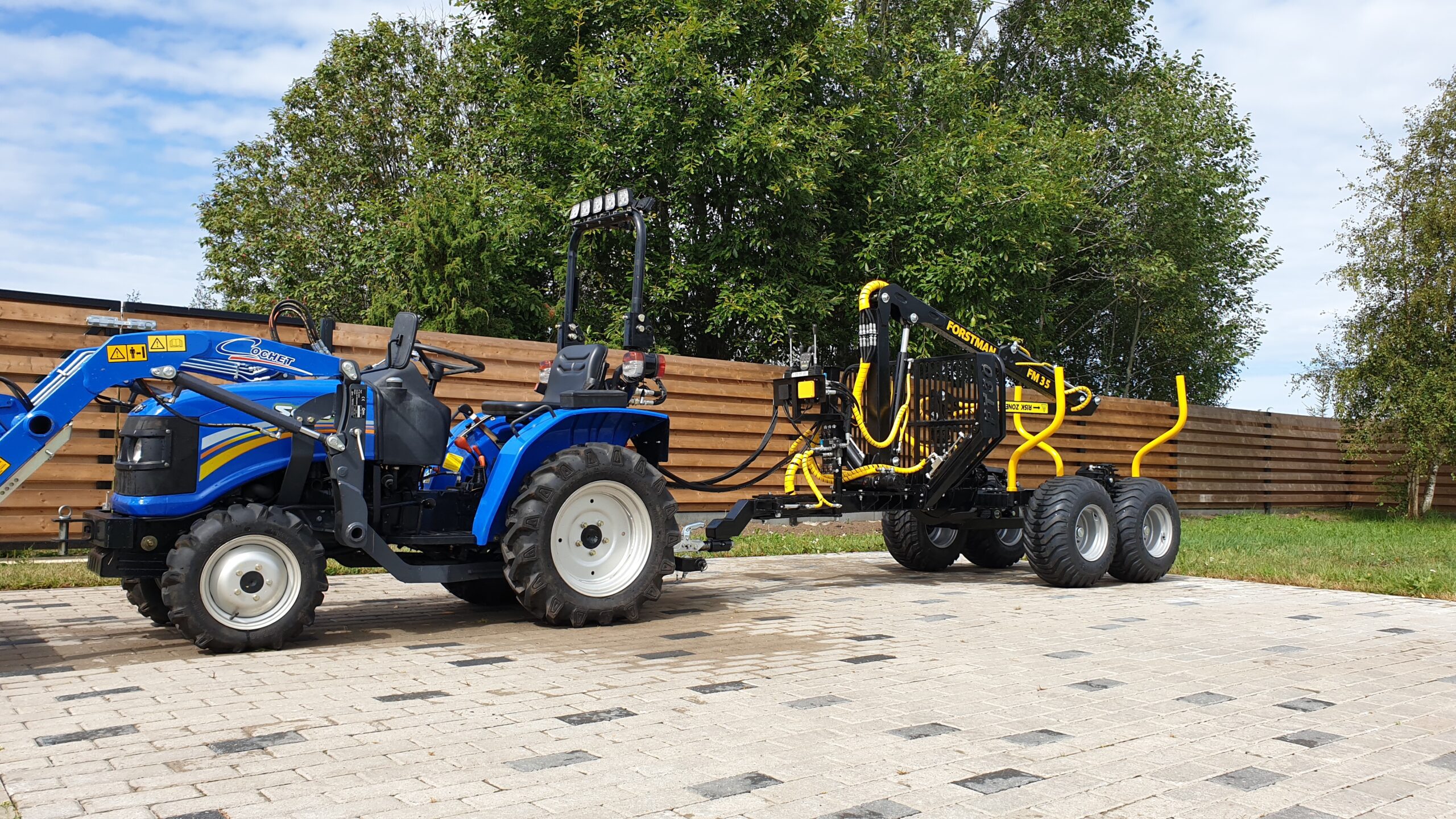

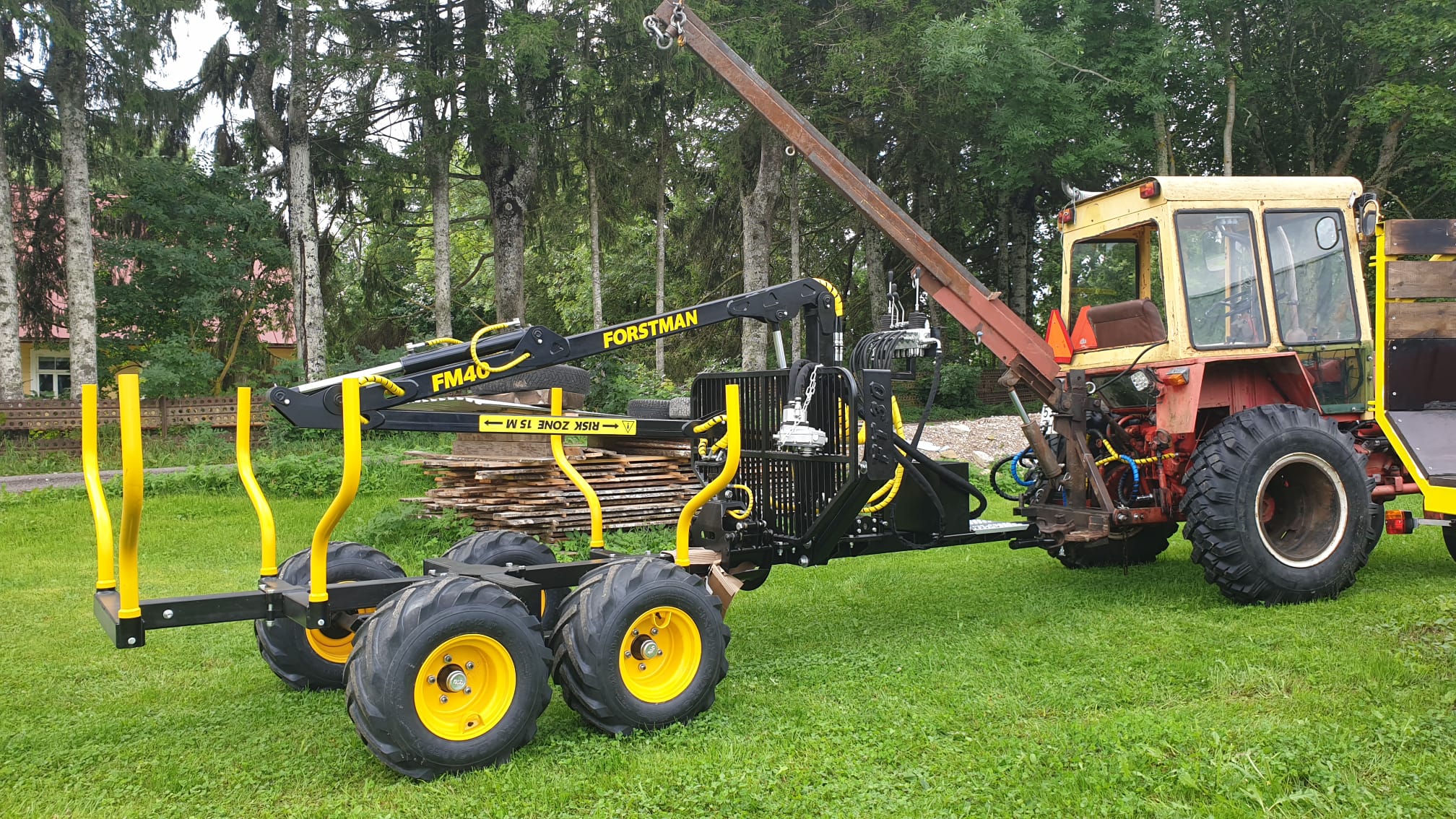

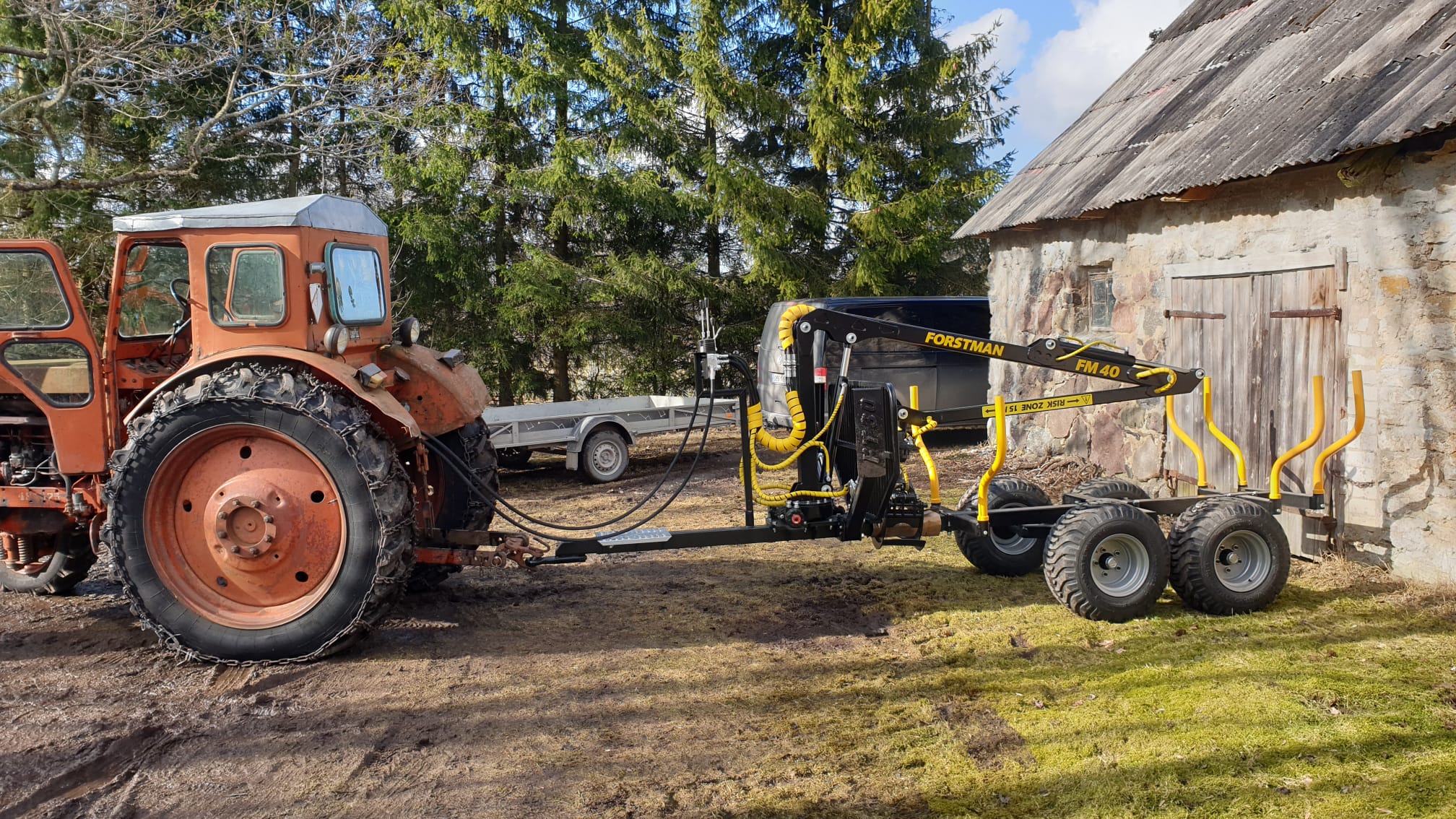

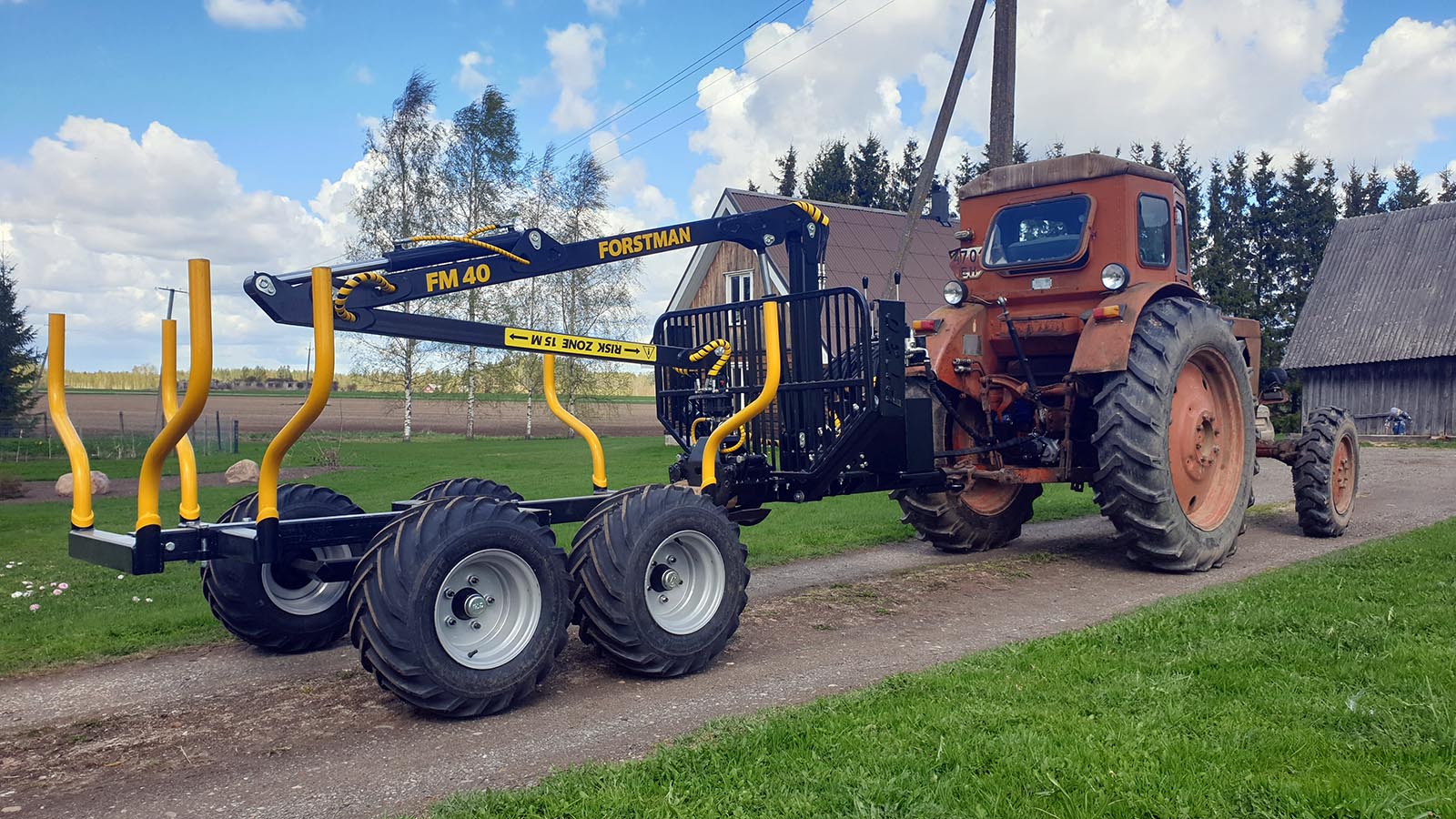

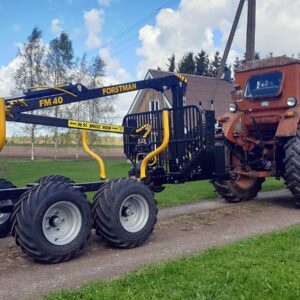

Forstman FM40 with FT30 trailer
Model 1
The basic Model 1 consists of the Forstman FM40 crane and the FT30 trailer. This setup represents the minimum configuration, including two pairs of logging posts, controls mounted directly on the trailer, and hydraulic power supplied by the tractor’s own pump. The hoses are fitted with a protective sleeve, the rotator is provided by Formiko, and the control valve comes with joysticks. The trailer is equipped with a straight towbar and a 45 mm hook. The trailer frame is hot-dip galvanized, and the crane is powderpainted in blue RAL5002.
Made of St355 steel, grapple of Hardox 450.
Technical specs :
Crane FM40 with 4 m reach
- Rotation: 360°
- Grab: 0.11 m², opening 820 mm, Hardox 450
- Valve block: 7P40 monoblock
- Valve block mountable on drawbar
- Lifting capacity: 360 kg at 4 m reach
- Hydraulic supply from tractor 1/2″ ISO A
- Safety locks on support feet
Trailer FT30
- Payload capacity: 3 t
- 2 pairs of load posts
- Tires: 300/65 R12 Ply8
- Towing eye: 45 mm ring
- Length: 3700 mm
- Width: 1580 mm
- Weight: 690 kg
Price : 7150 € + VAT. 24%
0% VAT: Available for sale to VAT-registered companies or customers outside the EU.
Forstman FM40 with FT30 trailer + W100
Model 2
The Model 2 consists of the Forstman FM40 crane and the FT30 trailer. This setup has 3 pairs of logging posts, controls mounted directly on the trailer and hydraulic power supplied by the tractor’s own pump. The hoses are fitted with a protective sleeve, the rotator is provided by Formiko, and the control valve comes with joysticks. The trailer is equipped with a angled towbar and a 45 mm hook (suitable for Solis 20 and Solis 26 tractors or similar compact tractors ). The trailer frame is hot-dip galvanized, and the crane is powderpainted in black RAL9005.
In addition, it comes with a trailer rear extension of +1500 mm and a hydraulic winch W100. Made of St355 steel, grapple of Hardox 450.
Technical specs :
Crane FM40 with 4 m reach
- Rotation: 360°
- Grab: 0.11 m², opening 820 mm, Hardox 450
- Valve block: 7P40 monoblock
- Valve block mountable on drawbar
- Lifting capacity: 360 kg at 4 m reach
- Hydraulic supply from tractor 1/2″ ISO A
- Safety locks on support feet
Trailer FT30
- Payload capacity: 3 t
- 3 pairs of load posts
- Rear extension +1500 mm
- Tires: 300/65 R12 Ply8
- Towing eye: 45 mm / Solis 26 model
- Length: 3700 mm
- Width: 1580 mm
- Weight: 730 kg
Extra equipment
- W100 hydraulic winch / 40 m x 5 mm wire
- Remote controlled 12V
Price : 8950 € + VAT. 24%
0% VAT: Available for sale to VAT-registered companies or customers outside the EU.
Forstman FM40 with FT35 trailer + W100 + PTO pump + BLB hydaulic valve
Model 3
The Model 3 consists of the Forstman FM40 crane and the FT35 trailer. This setup represents the configuration of 3 pairs of logging posts, controls mounted directly on the trailer, and hydraulic power supplied by PTO pump. The hoses are fitted with a protective sleeve, the rotator is provided by Formiko, and the control valve comes with joysticks. The trailer is equipped with a angled towbar and a 50 mm hook (car towbar). The trailer frame is hot-dip galvanized, and the crane is powderpainted in orange RAL2009.
In addition, it comes with a trailer rear extension of +1500 mm and a hydraulic winch W100, PTO pump and logging post extensions 700/500 mm.
Technical specs :
Crane FM40 with 4 m reach
- Rotation: 360°
- Grab: 0.11 m², opening 820 mm, Hardox 450
- Valve block: BLB BM50 (Italy)
- Compensative valve
- Quick-arm for joystick
- Valve block mountable on drawbar
- Lifting capacity: 360 kg at 4 m reach
Trailer FT35
- Payload capacity: 3,7 t
- 3 pairs of load posts
- Rear extension +1500 mm
- Tires: 300/65 R12 Ply8
- Towing eye: 50 mm / trailer hook, cast iron
- Length: 4200 mm
- Width: 1680 mm
- Weight: 805 kg
Extra equipment
- W100 hydraulic winch / 40 m x 5 mm wire
- Remote controlled 12V TeleRadio
- PTO pump 2 series with quick coupling (Italy)
- Oiltank 30 L ,gauge, filter etc.
- Log post extensions x 6 pcs.
Price : 12 350 € + VAT. 24%
0% VAT: Available for sale to VAT-registered companies or customers outside the EU.
Forstman FM40 with FT30 trailer + W100 + PTO pump
Model 4
The Model 4 consists of the Forstman FM40 crane and the FT30 trailer. It features three pairs of logging posts, with controls mounted directly on the trailer and hydraulic power supplied by a PTO pump. The hoses are protected with a sleeve, the rotator is supplied by Formiko, and the control valve is operated via joysticks. The trailer is equipped with both a straight hook and a 45 mm hook, making it suitable for compact tractors. Both the trailer frame and the crane are powder-coated in black (RAL 9005).
In addition, the setup includes a 1500 mm trailer rear extension, a W100 hydraulic winch, a PTO pump (Series 2) with a 30-liter oil tank, a structure made of ST355 steel, and a grapple made of Hardox 450. This is the best-selling configuration of all time.
Technical specs :
Crane FM40 with 4 m reach
- Rotation: 360°
- Grab: 0.11 m², opening 820 mm, Hardox 450
- Valve block: 7P40 monoblock
- Valve block mountable on drawbar
- Lifting capacity: 360 kg at 4 m reach
- Hydraulic supply from tractor 1/2″ ISO A
- Safety locks on support feet
Trailer FT30
- Payload capacity: 3 t
- 3 pairs of load posts
- Rear extension +1500 mm
- Tires: 300/65 R12 Ply8
- Towing eye: 45 mm / straight
- Length: 4200 mm
- Width: 1580 mm
- Weight: 730 kg
Extra equipment
- W100 hydraulic winch / 40 m x 5 mm wire
- Remote controlled 12V TeleRadio
- PTO pump 2 series with oiltank 30 l
Price : 10 700 € + VAT. 24%
0% VAT: Available for sale to VAT-registered companies or customers outside the EU.
Forstman FM40 with FT35 trailer + W100 + 4WD system + PTO pump
Model 5
The basic Model 5 consists of the Forstman FM40 crane and the FT35 trailer. This setup includes three pairs of logging posts, controls mounted directly on the trailer, and hydraulic power supplied by the tractor’s own pump. The hoses are fitted with a protective sleeve, the rotator is supplied by Formiko, and the control valve is operated via joysticks. The trailer is equipped with a changeable straight towbar. The trailer frame is painted, while the crane is powder-coated in black (RAL 9005).
In addition, it comes with a W100 hydraulic winch, a 4WD system, a PTO pump with a 30-liter oil tank, and a 700/500 mm logging post extension. The structure is made of ST355 steel, and the grapple is made of Hardox 450.
Technical specs :
Crane FM40 with 4 m reach
- Rotation: 360°
- Grab: 0.11 m², opening 820 mm, Hardox 450
- Valve block: BLB BM50
- Quick-arm joystick
- Valve block mountable on drawbar
- Lifting capacity: 360 kg at 4 m reach
- Hydraulic supply from tractor 1/2″ ISO A
- Safety locks on support feet
Trailer FT35
- Payload capacity: 3,7 t
- 3 pairs of load posts
- Tires: 300/65 R12 Ply8
- Towing eye: 45 mm / straight
- Length: 4200 mm
- Width: 1780 mm
- Weight: 990 kg
Extra equipment
- W100 hydraulic winch / 40 m x 5 mm wire
- Remote controlled 12V TeleRadio
- 4WD system / 2 x 100 OMR / remote controlled
- PTO pump 2 series + oiltank 30 L
Price : 13 590 € + VAT. 24%
0% VAT: Available for sale to VAT-registered companies or customers outside the EU.

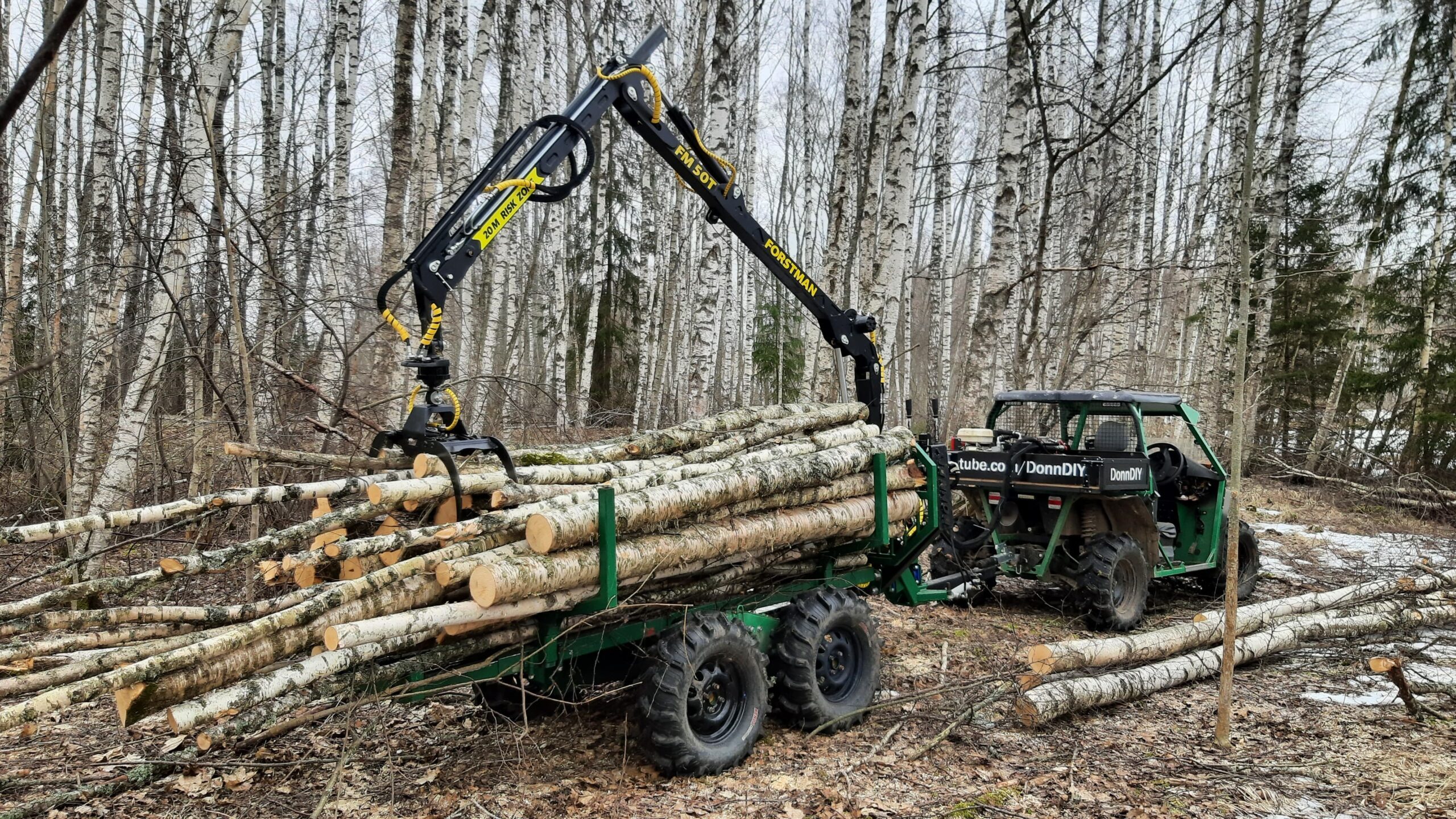

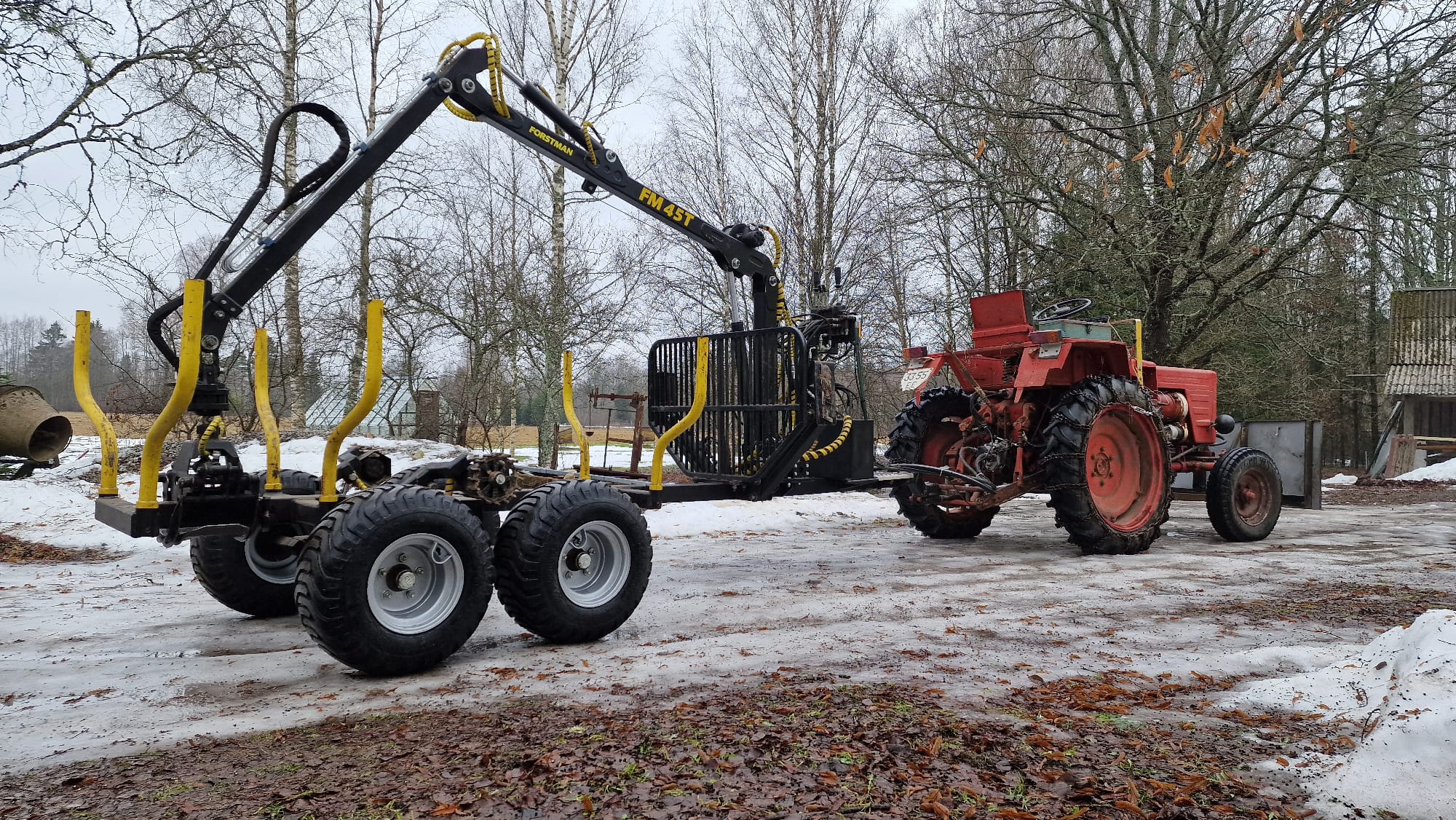

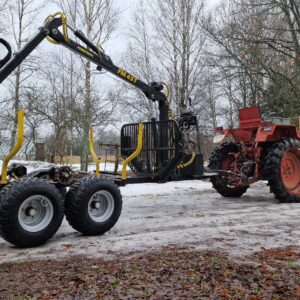

Forstman FM50T with FT35 trailer + W100 winch + 4WD system + PTO
Model 6
The Model 6 consists of the Forstman FM50T crane with a 5.1 m telescopic reach and the FT35 trailer. This setup includes all available extras: three pairs of logging posts, trailer-mounted controls, a PTO pump, a premium control valve, two quick-arms, a W100 hydraulic winch, a TeleRadio remote system for both the winch and 4WD, and two working lights.
The hydraulic hoses are fitted with protective sleeves, and the rotator is supplied by Formiko. The trailer is equipped with an angled towbar and a 45 mm hook. The frame is hot-dip galvanized, while the crane is powder-coated in blue (RAL 5002).
Both the trailer and the crane are built from ST355 steel, and the grapple is made of Hardox 450.
Technical specs :
Crane FM50T (5,1 m reach)
- Rotation: 360°
- Grab: 0.11 m², opening 820 mm, Hardox 450
- Valve block: BLB BM50
- Quick-arm joysticks: 2 pcs
- Valve block mountable on drawbar
- Lifting capacity: 310 kg at 4 m reach
- Lifting capacity: 190 kg at 5.1 m reach
- Hydraulic supply: PTO pump, 2-series
- Safety locks on support feet
Trailer FT35
- Payload capacity: 3.7 t
- Load posts: 2 pairs
- Tires: 300/65 R12 Ply8
- Towing eye: 45 mm ring
- Length: 4200 mm
- Width: 1780 mm
- Weight: 1030 kg
Optional Extras
- W100 hydraulic winch with 40 m x 5 mm wire
- TeleRadio wireless remote control (for winch + 4WD)
- 2-series quick coupling PTO pump set with 30 L tank
- Galvanized log post extensions (700/500 mm)
- Reinforced crane frame and housing
Price : 16 800 € + VAT. 24%
0% VAT: Available for sale to VAT-registered companies or customers outside the EU.
These six configurations represent the most common setups, with Model 4 being the most popular choice.

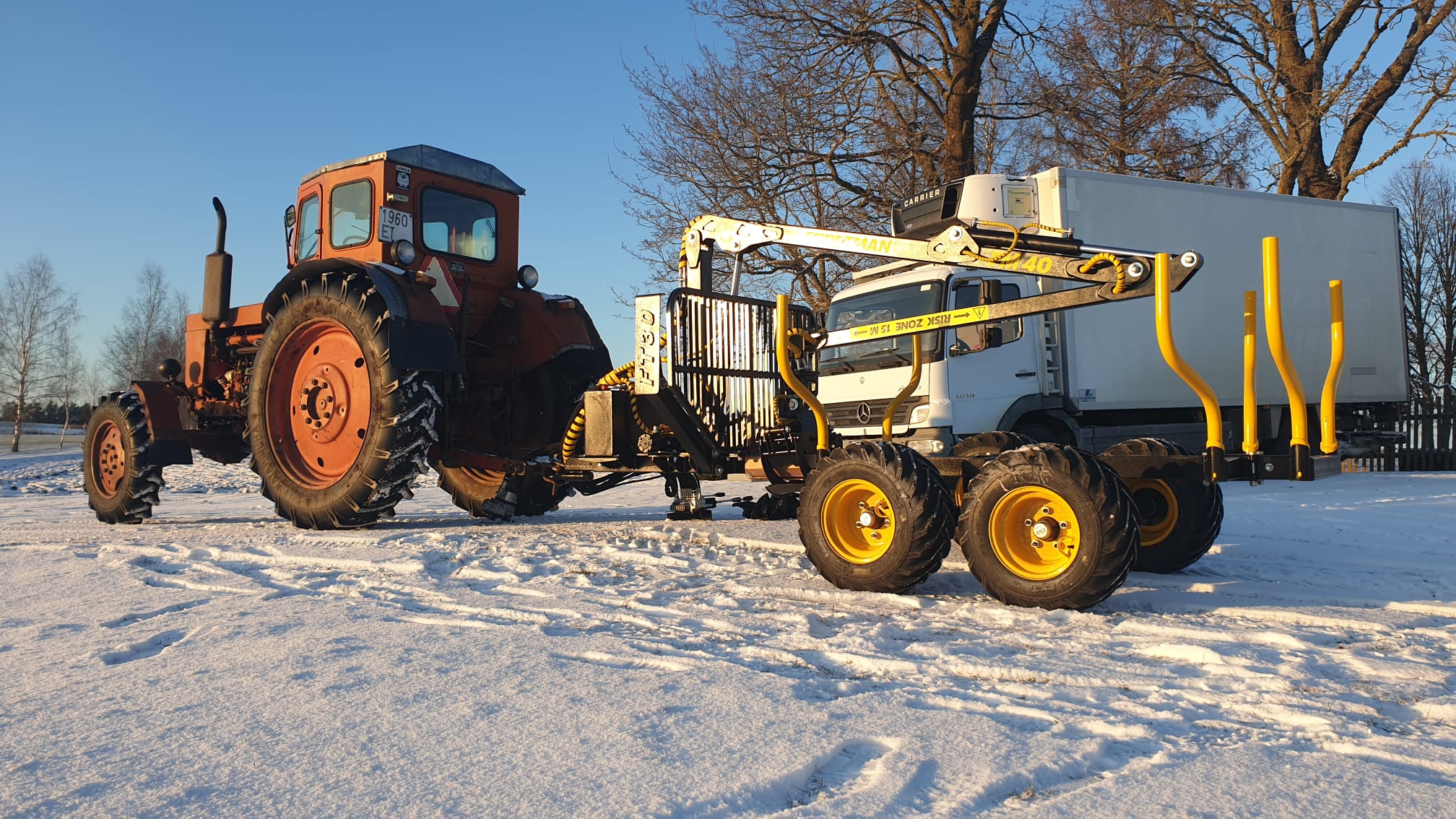

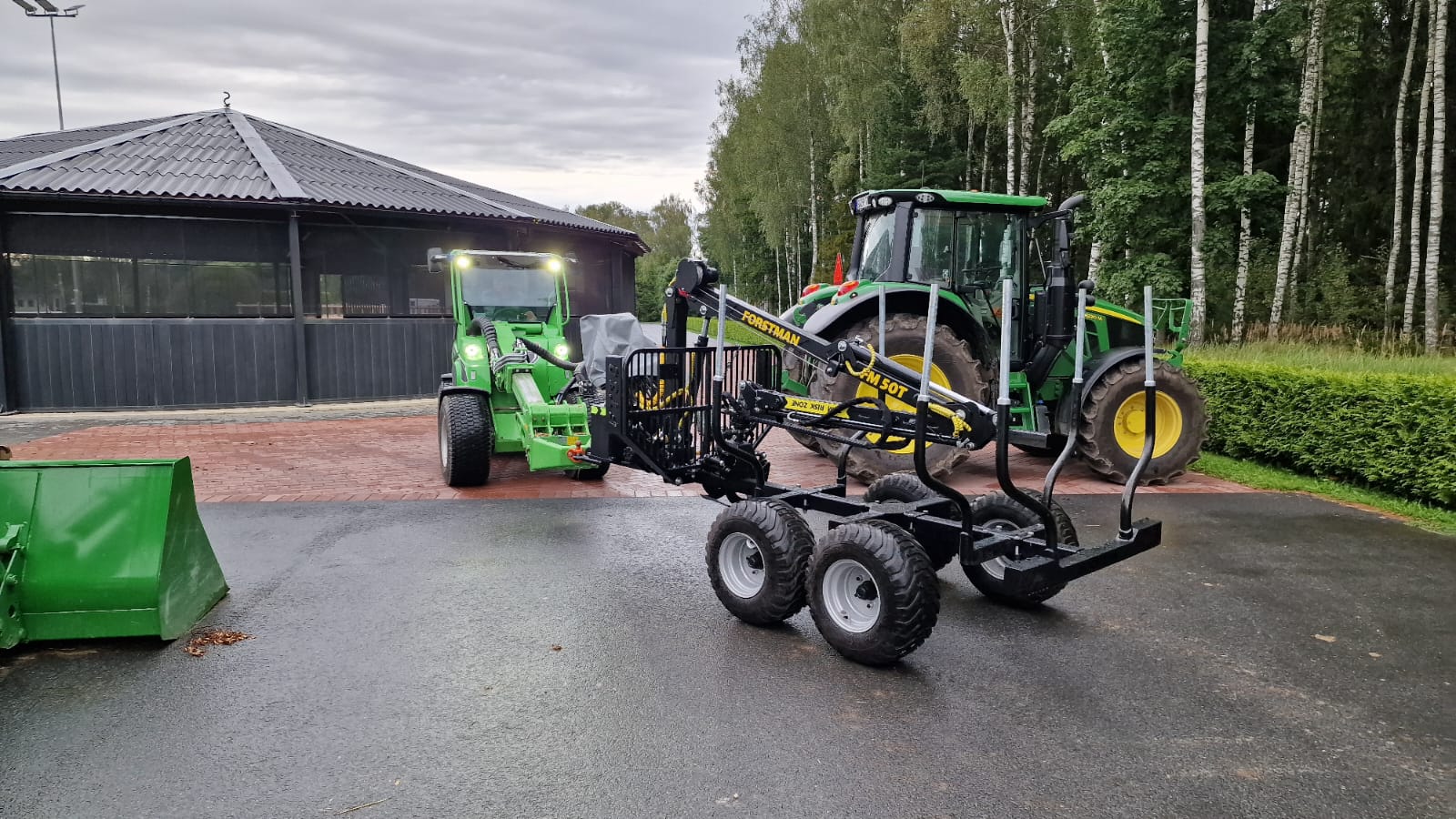

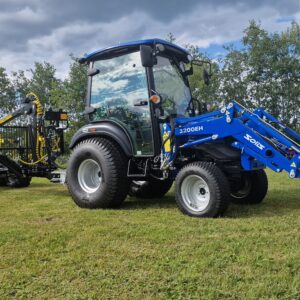

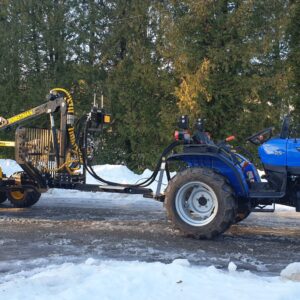

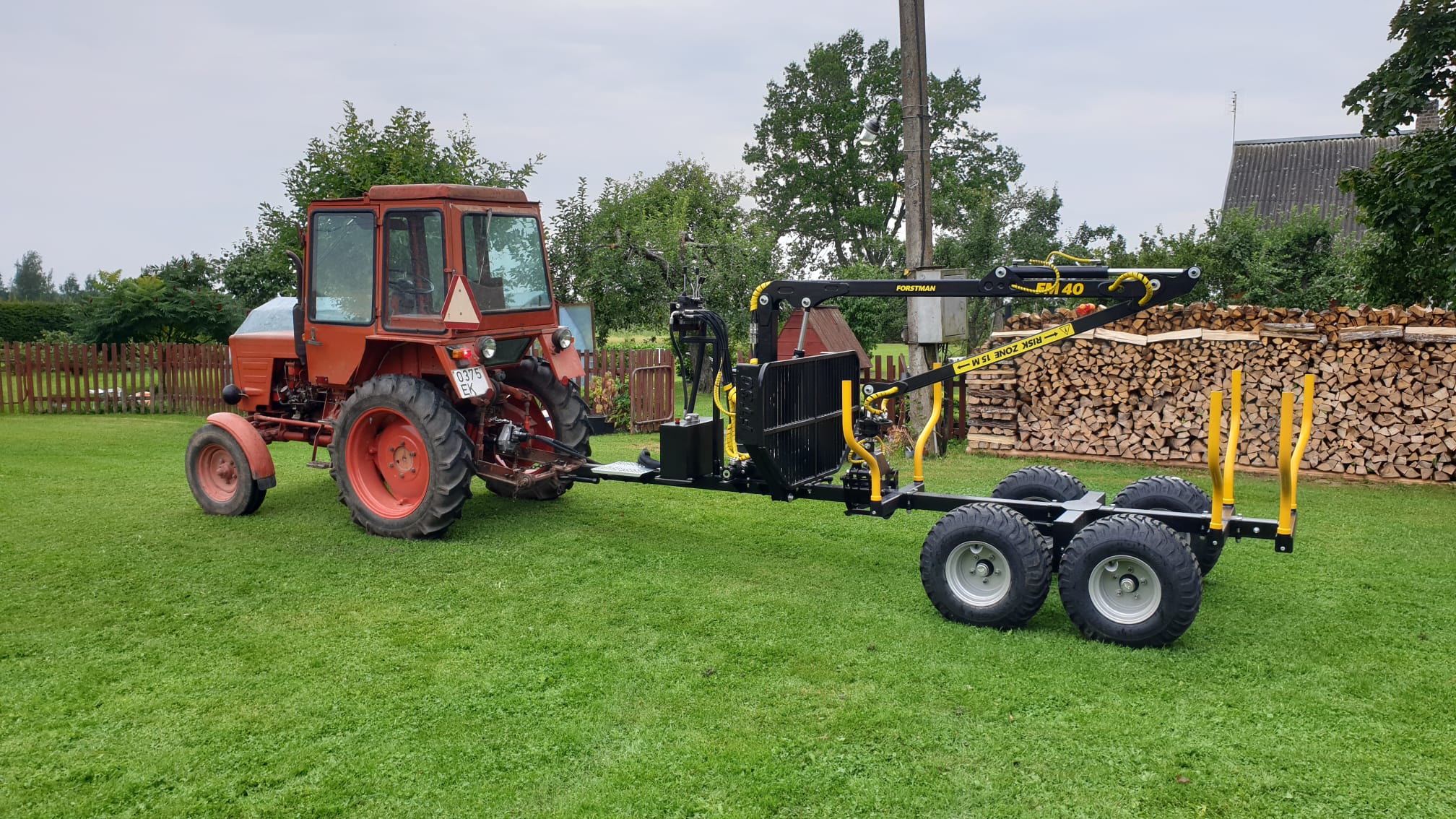

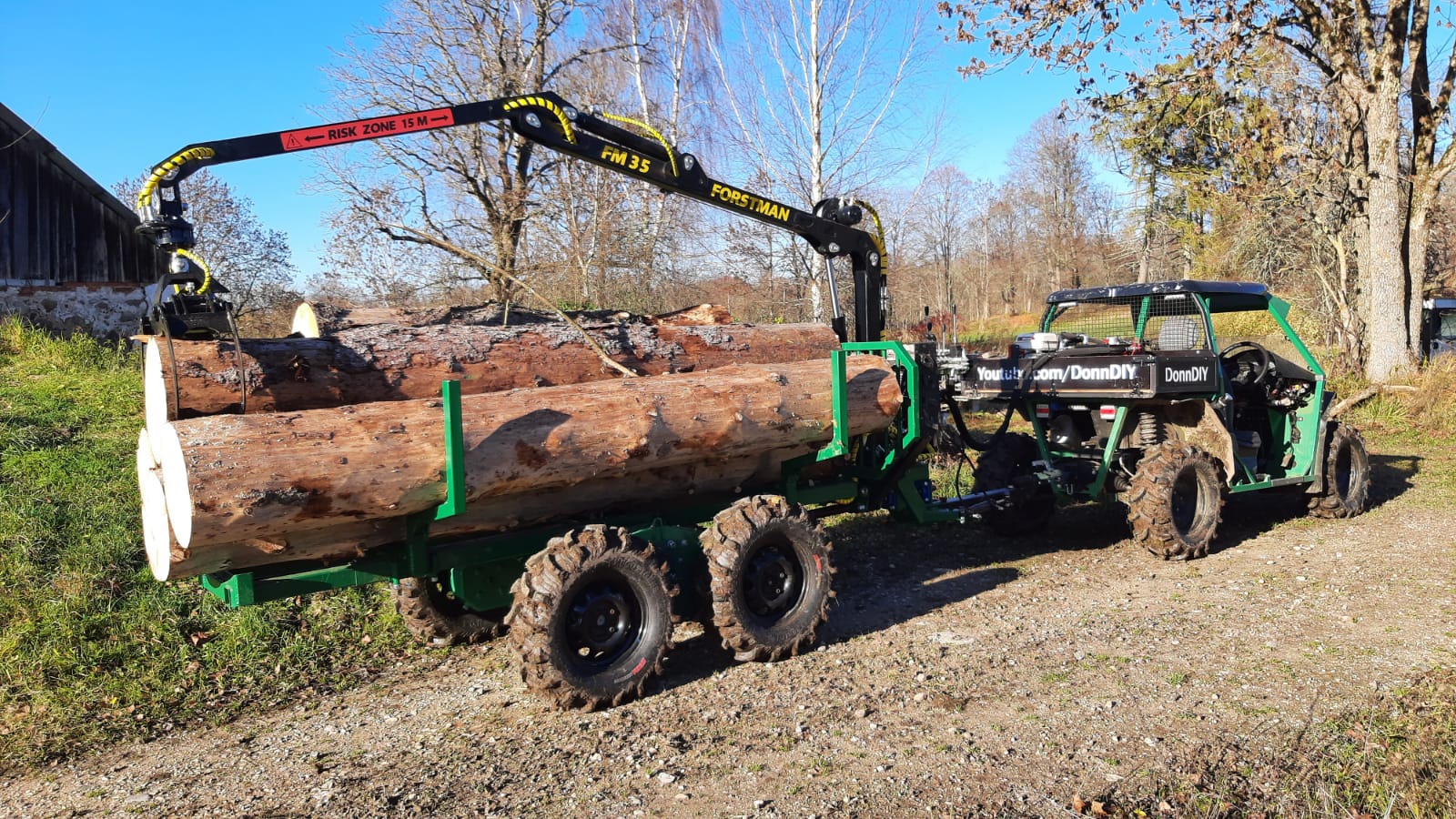

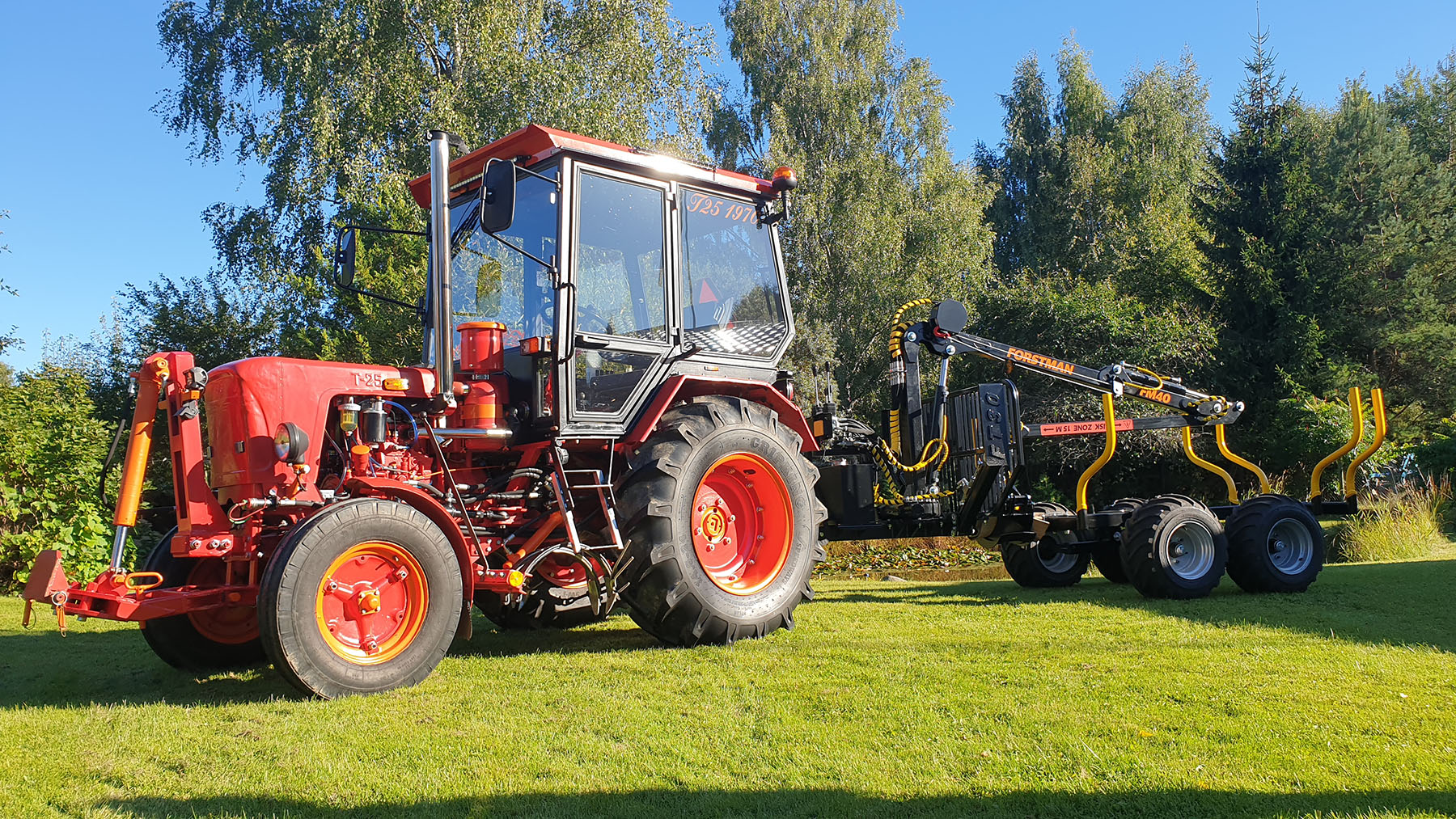

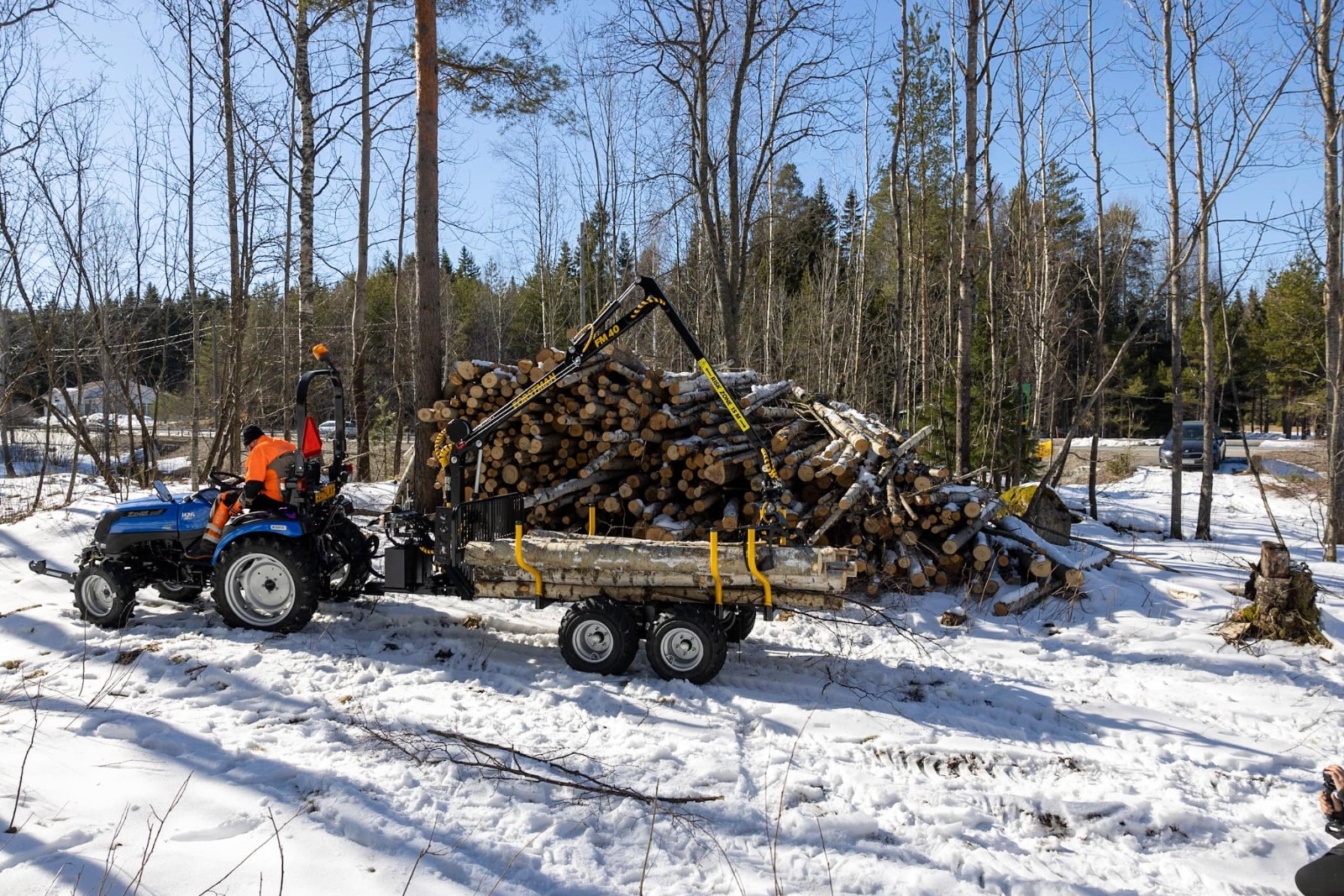

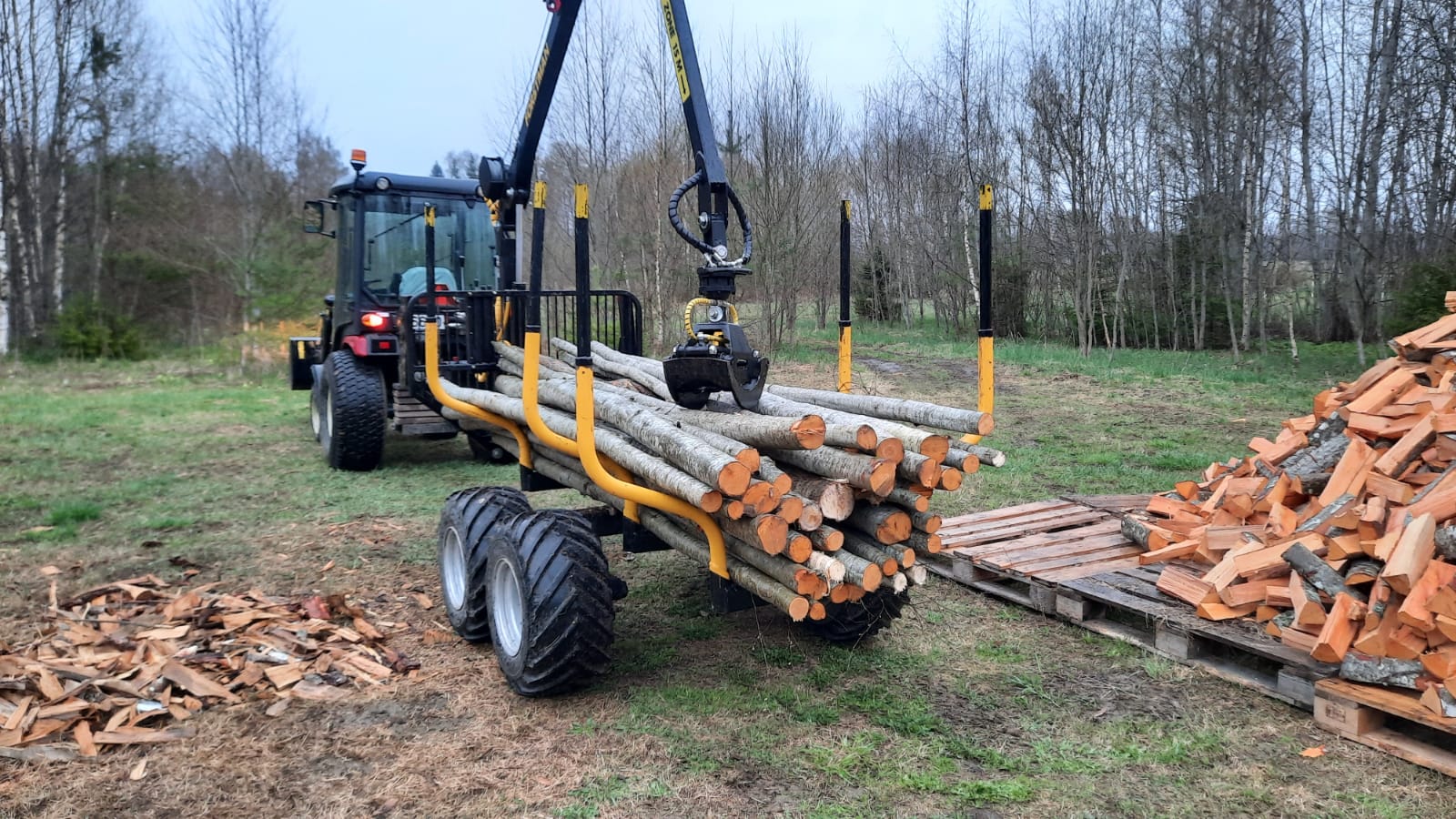

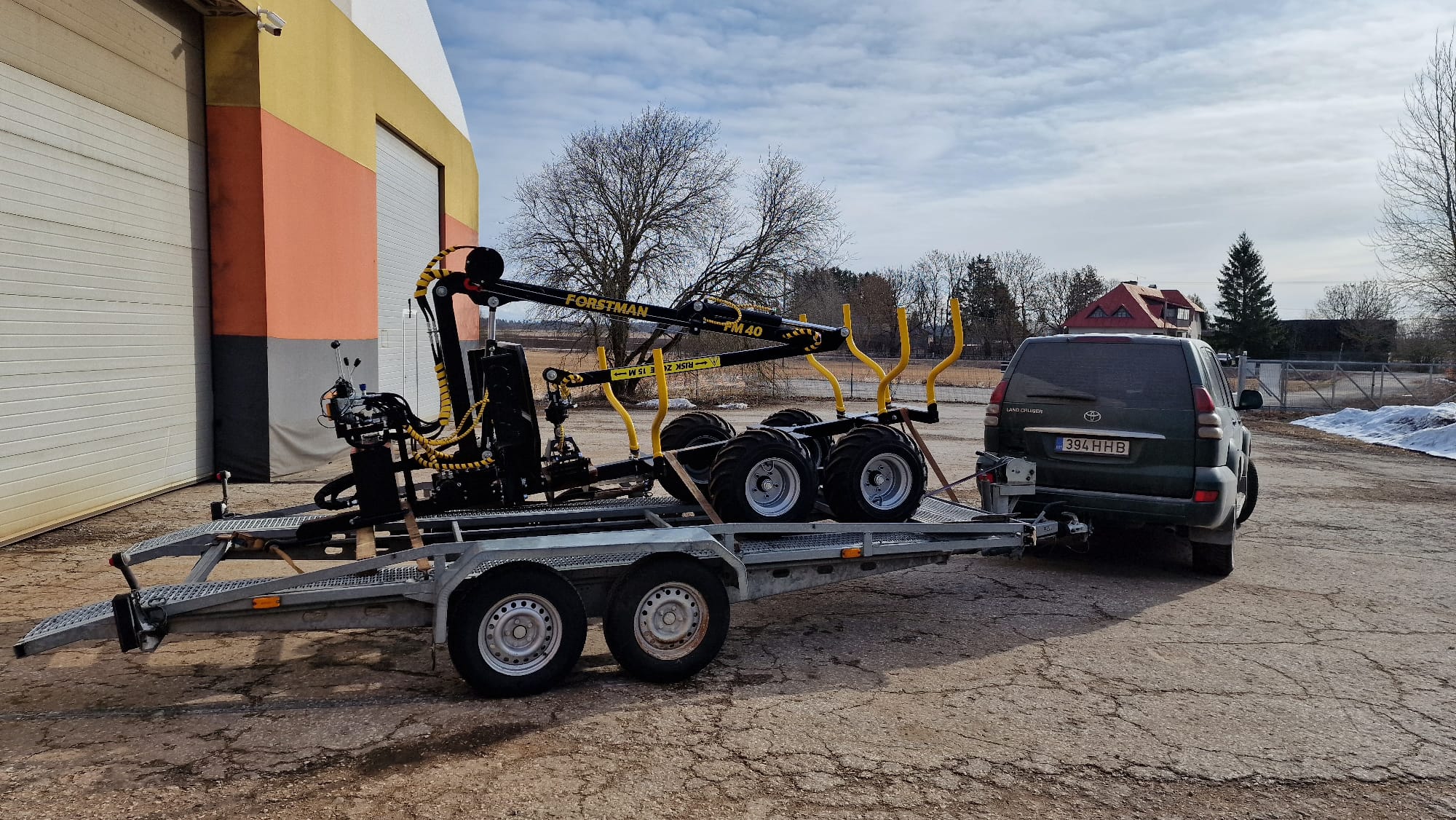

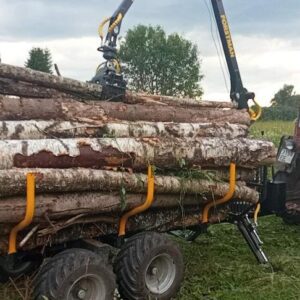

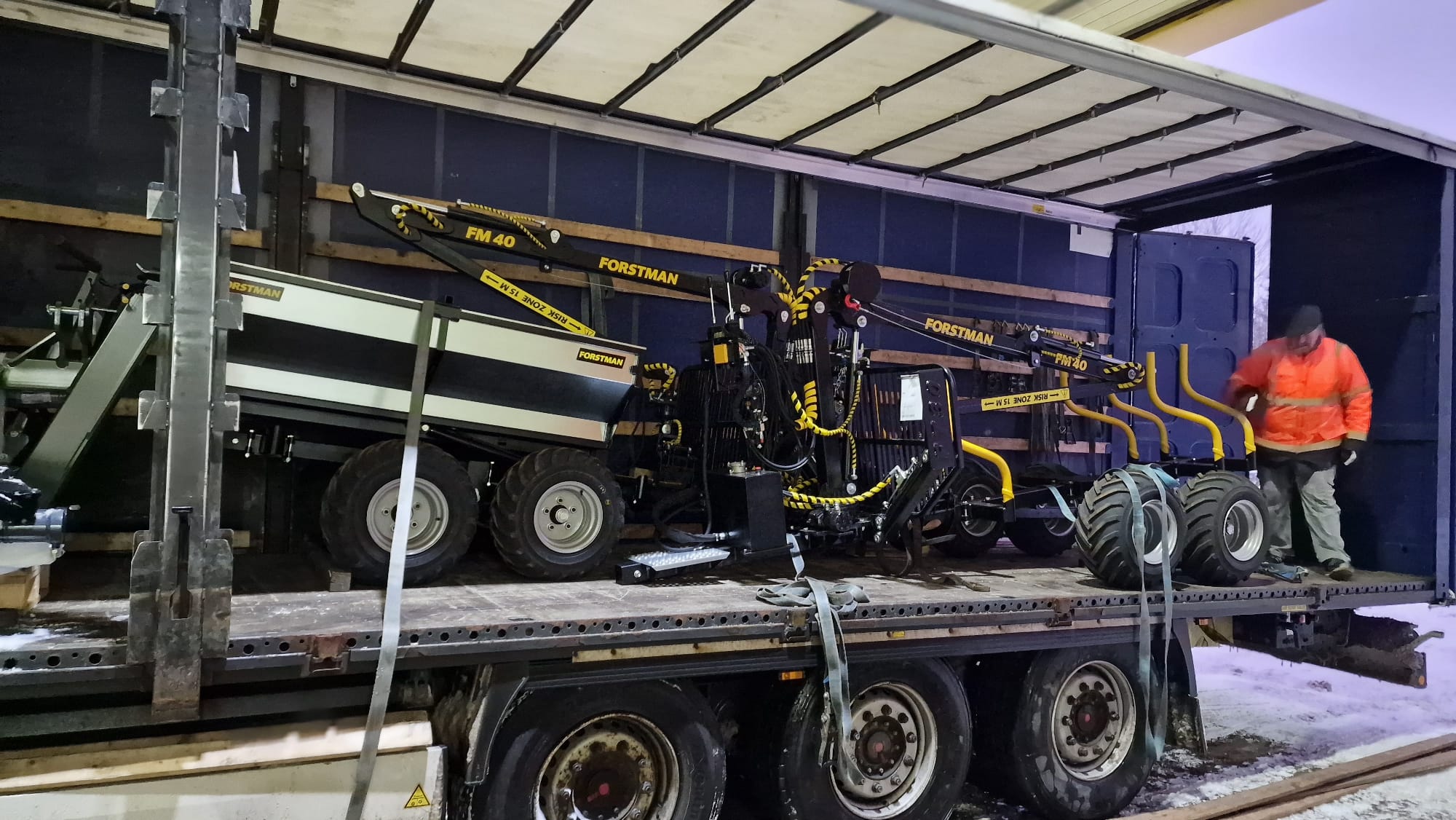

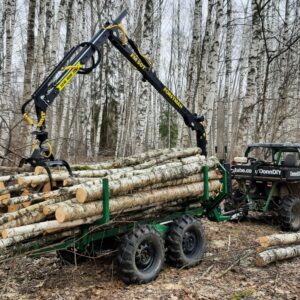

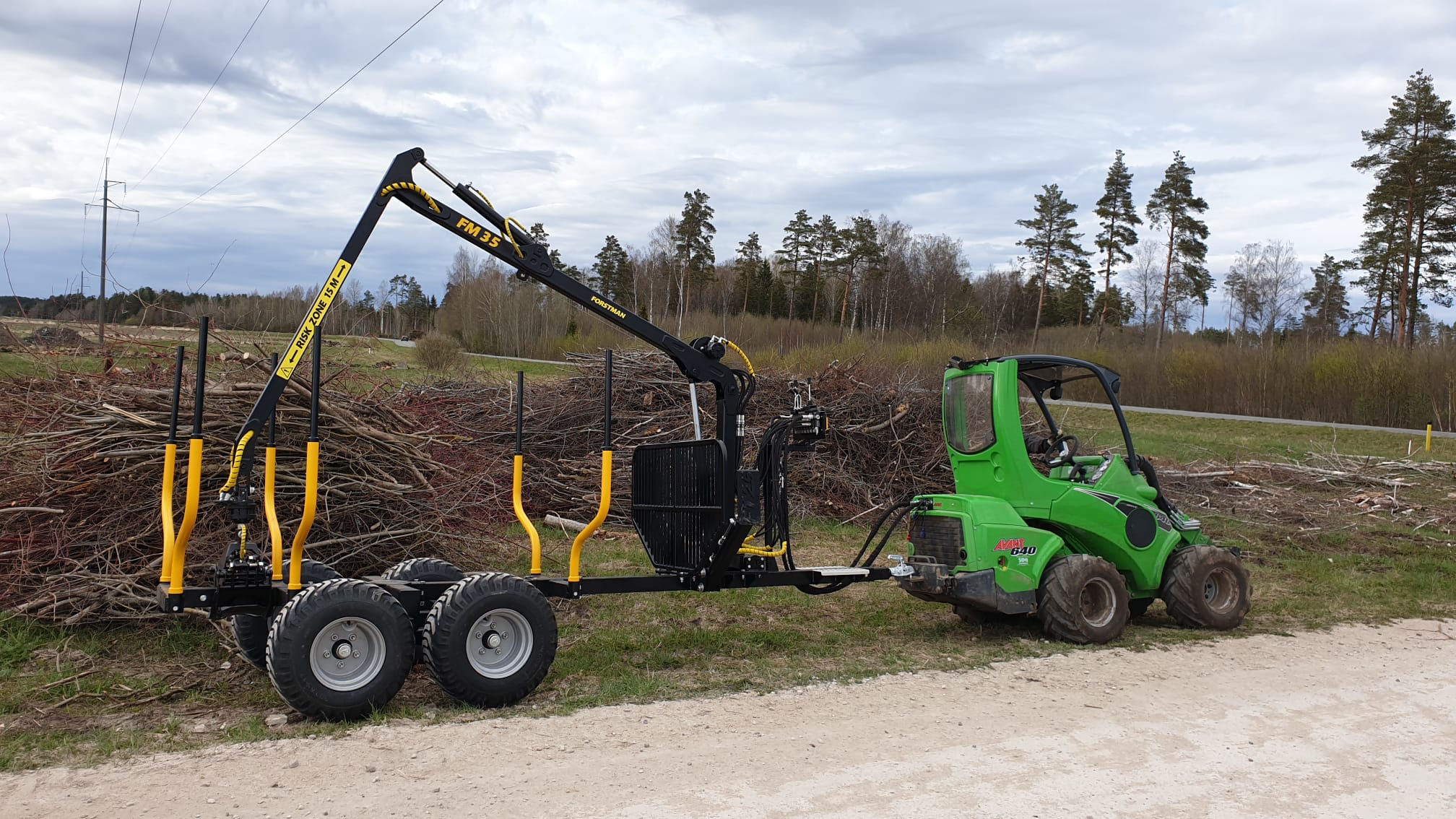

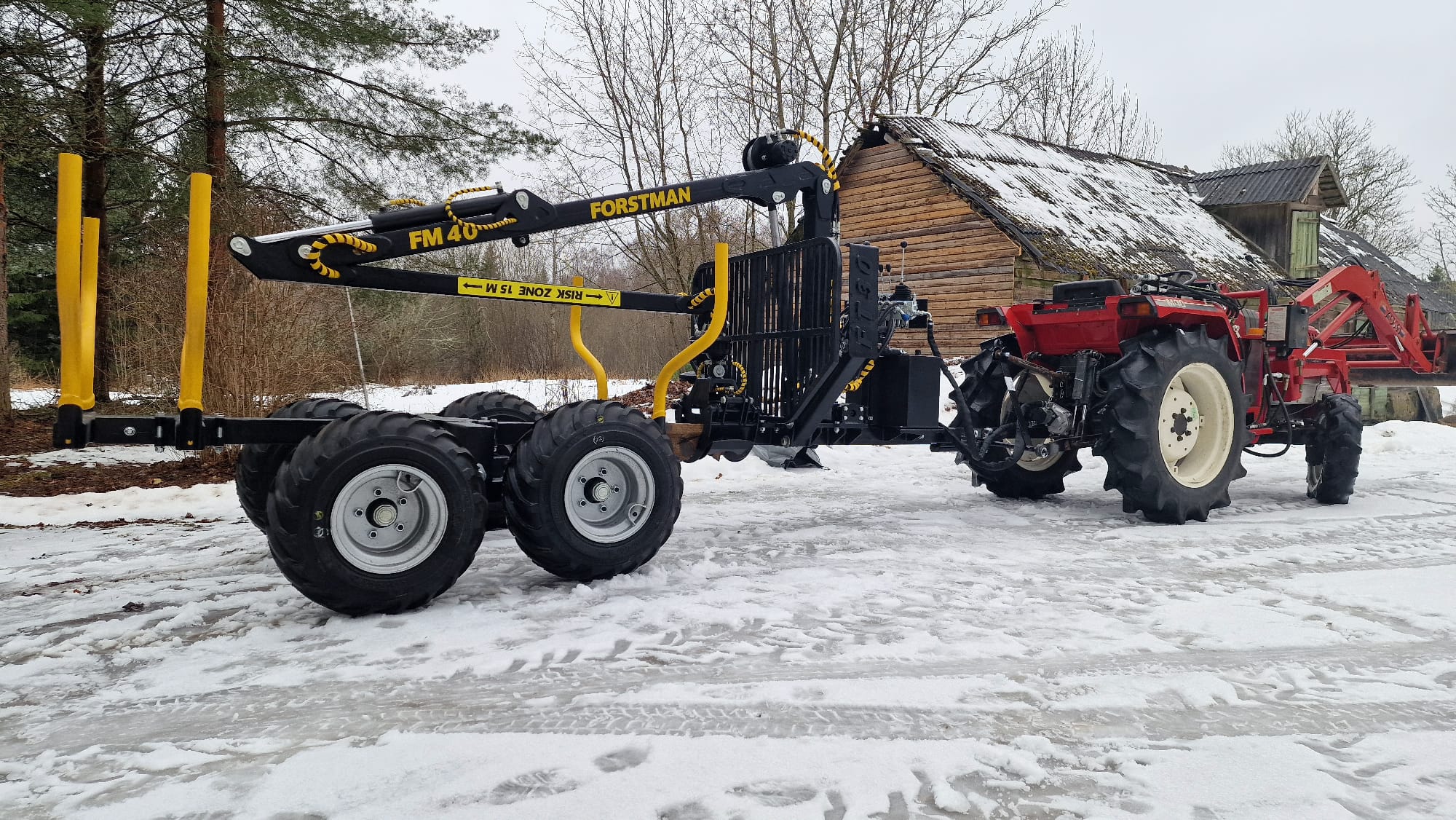

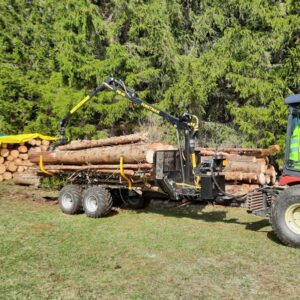

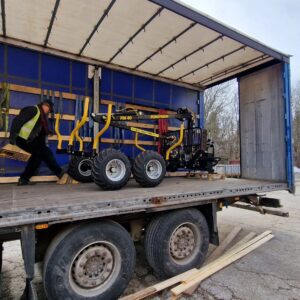

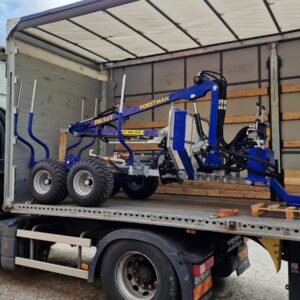

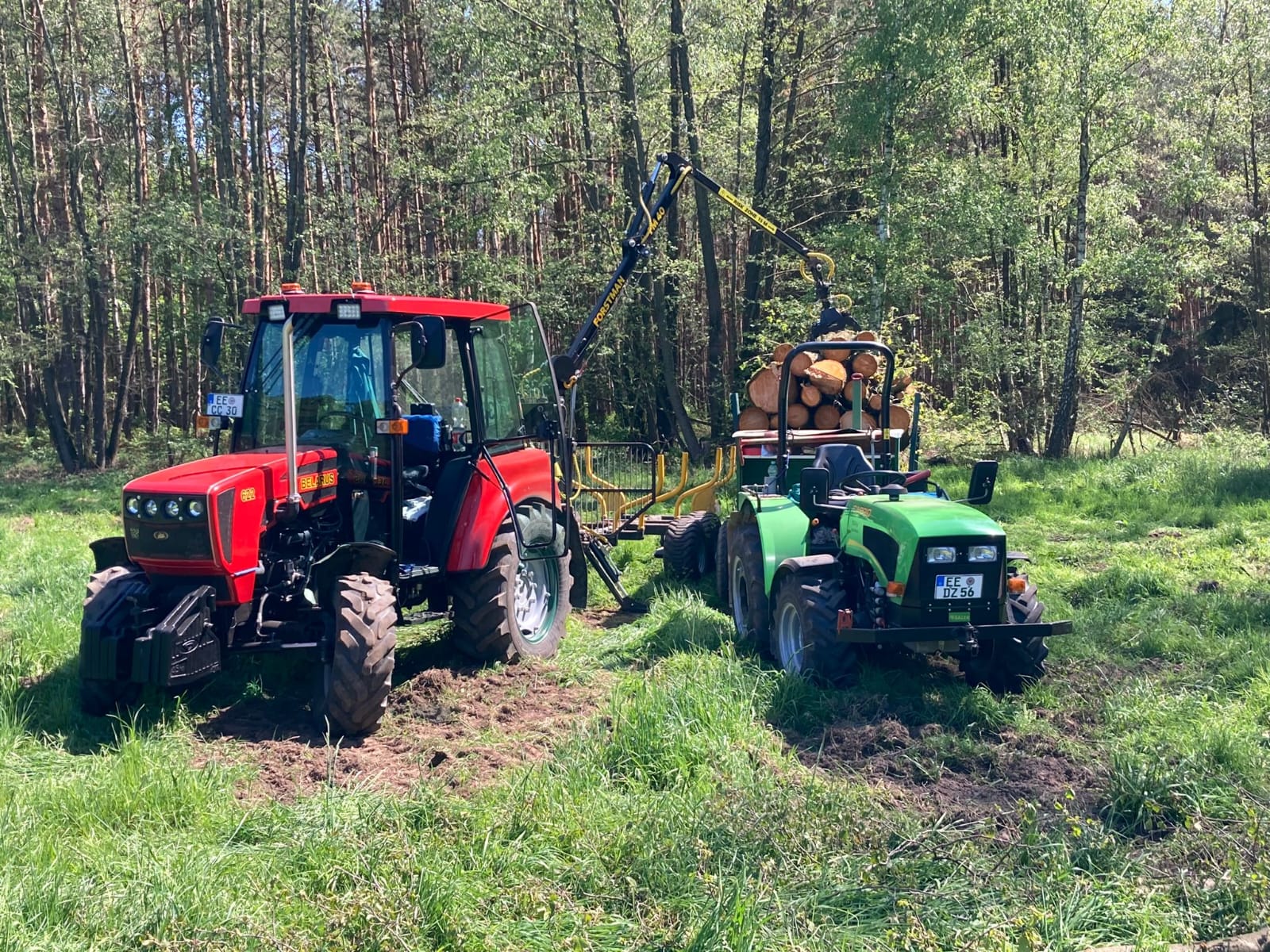

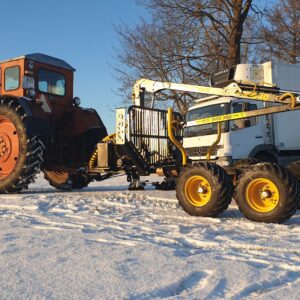

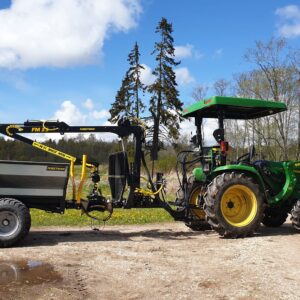

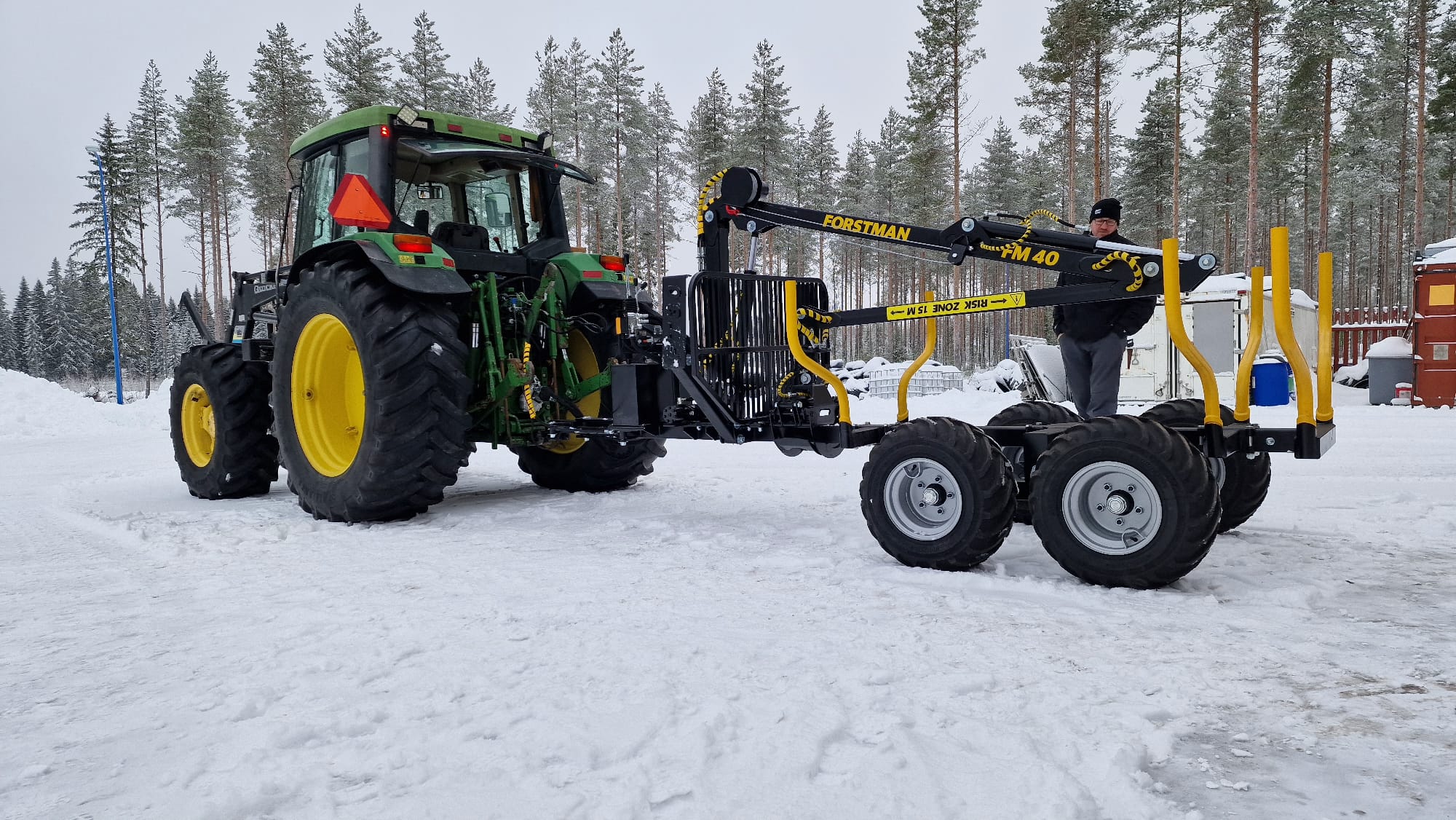

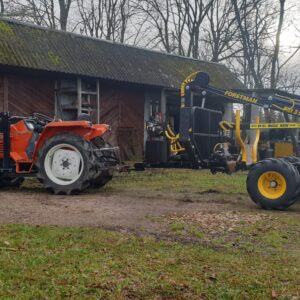

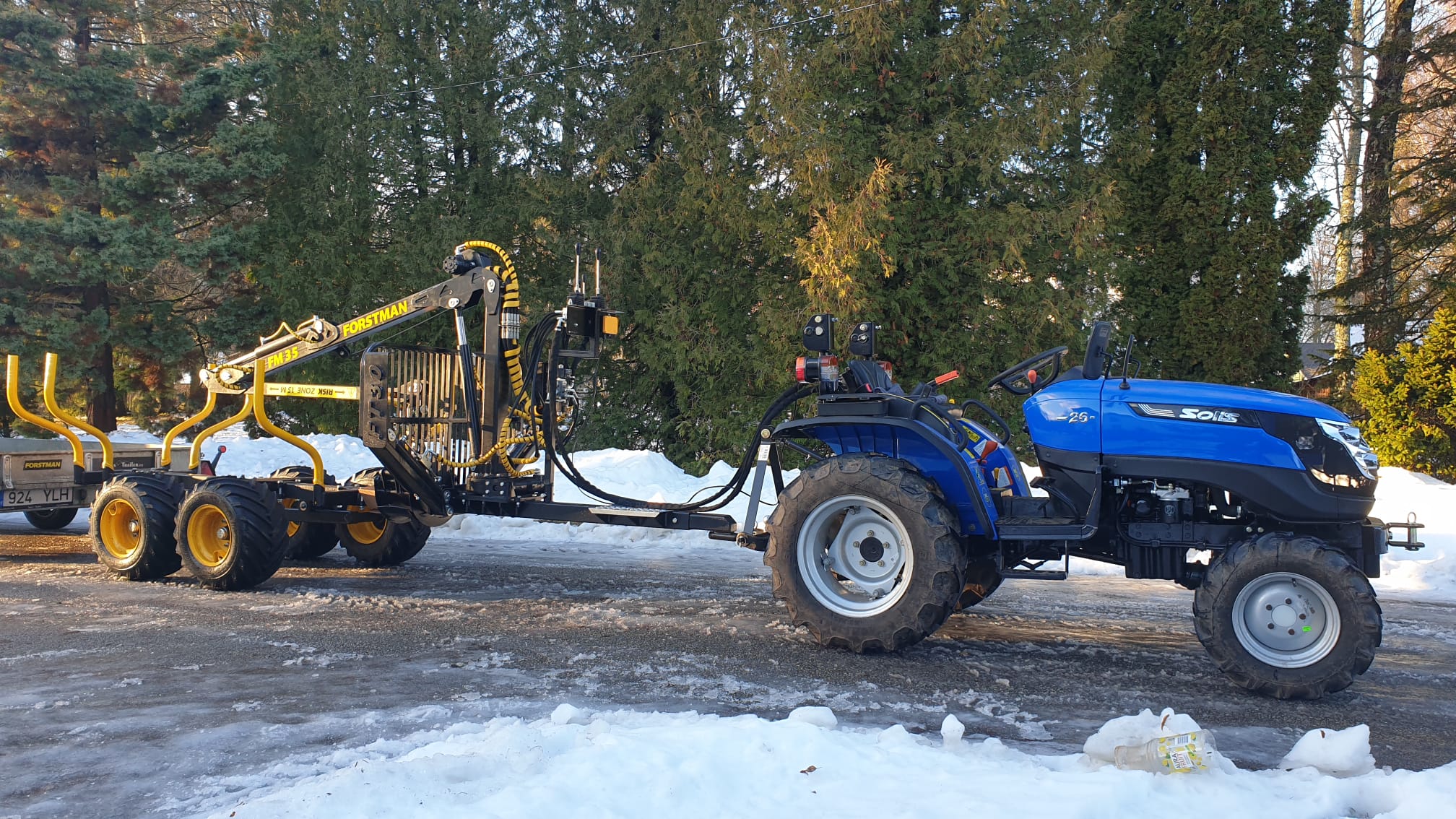

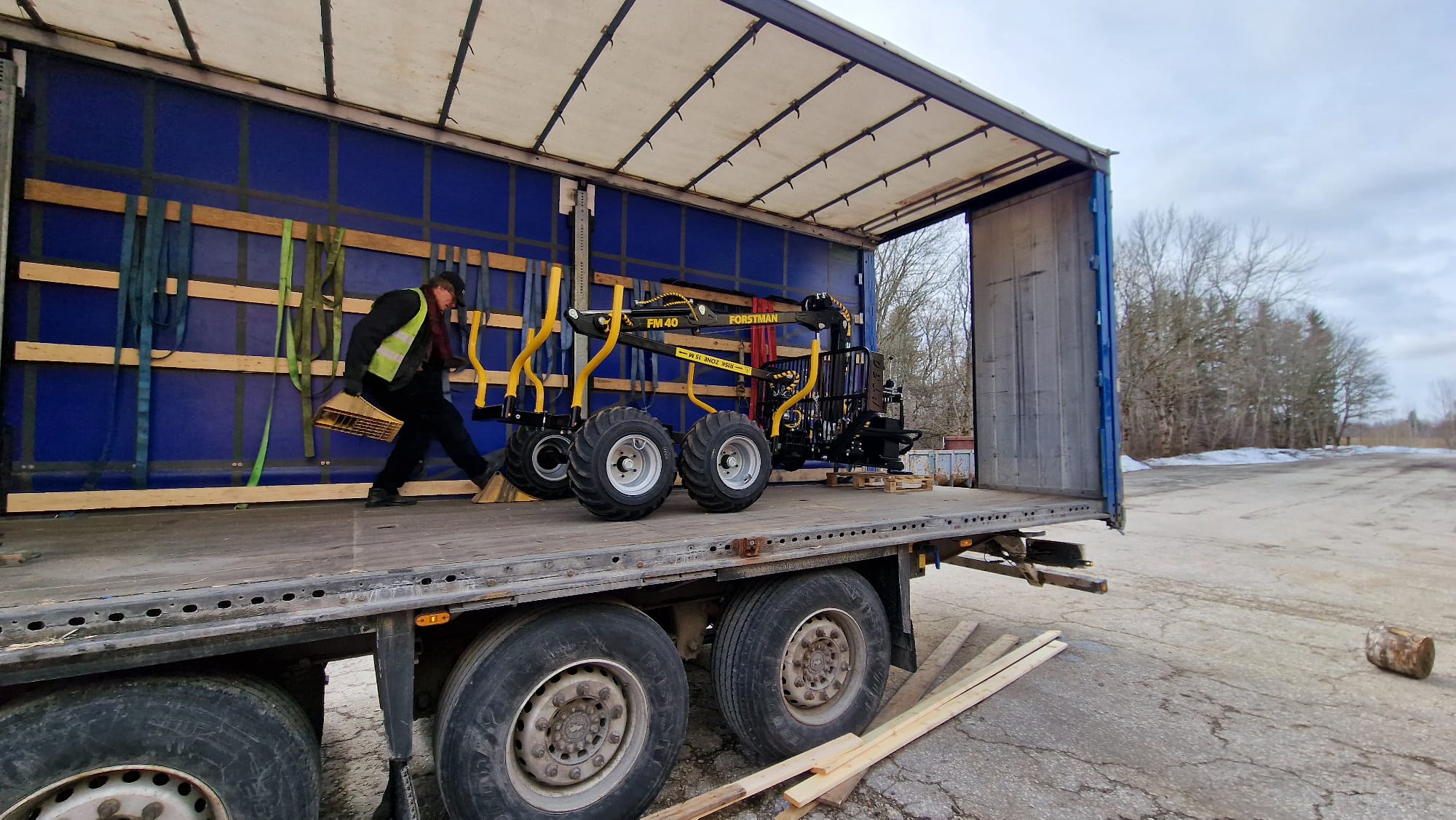

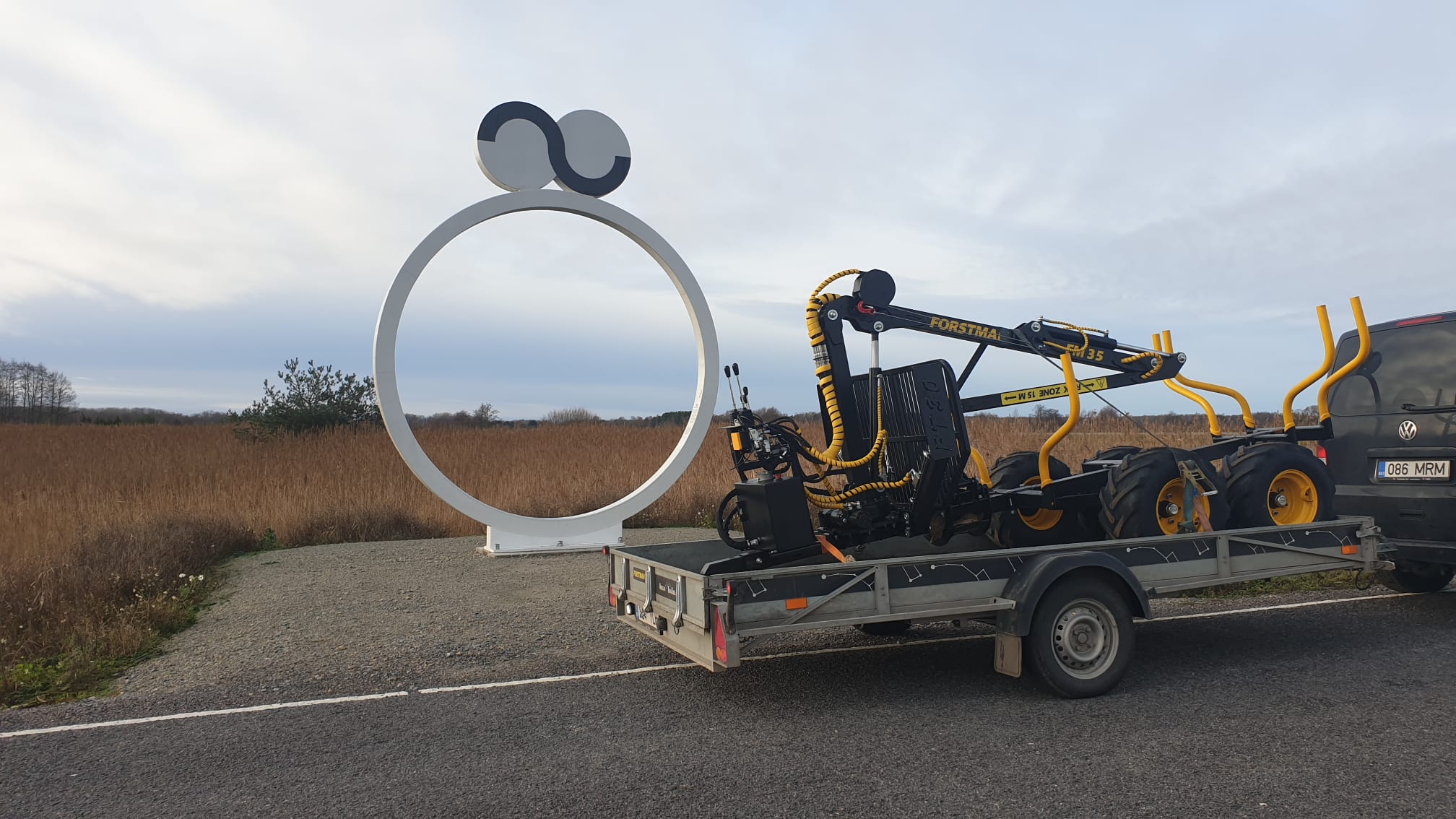

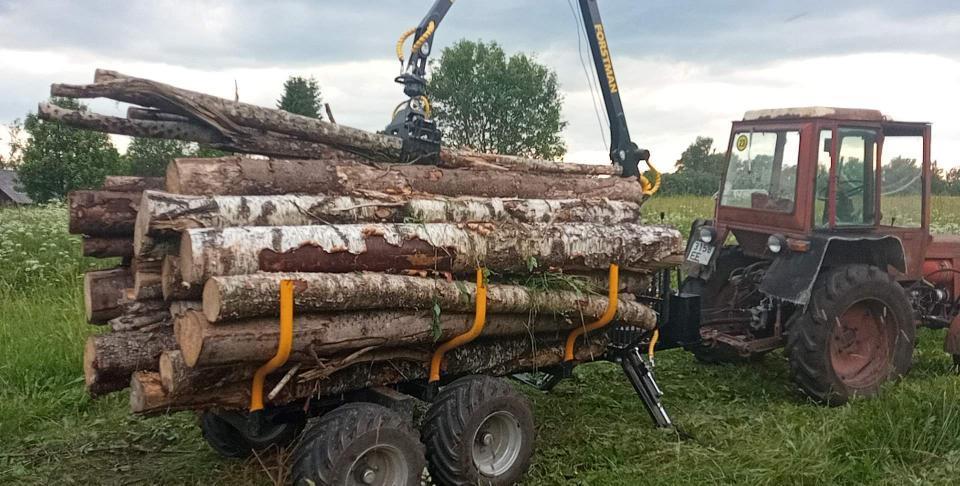

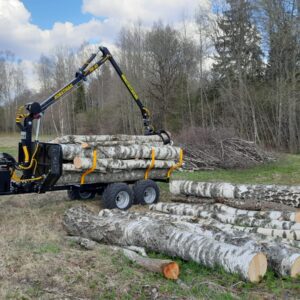

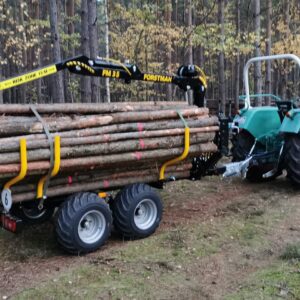

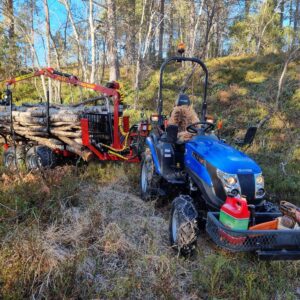

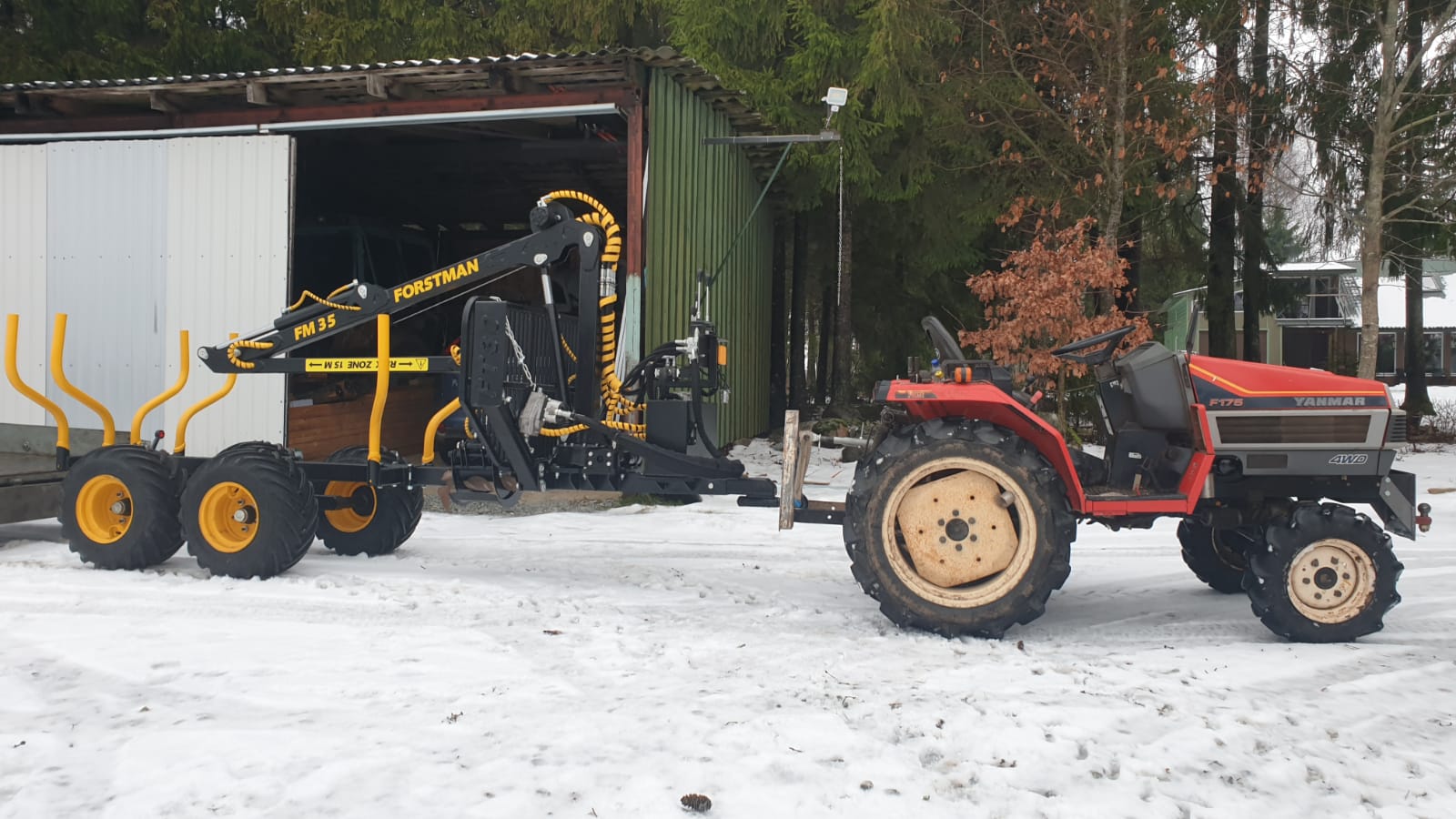

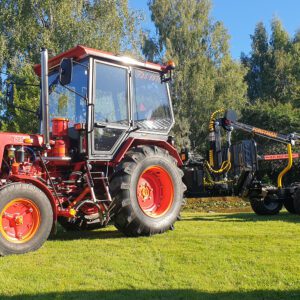

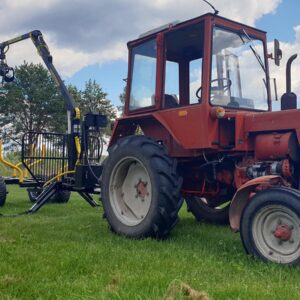

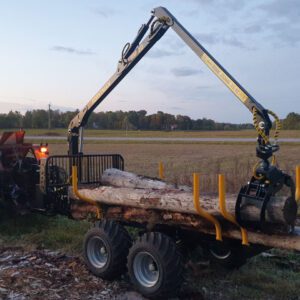

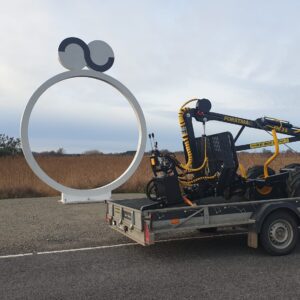

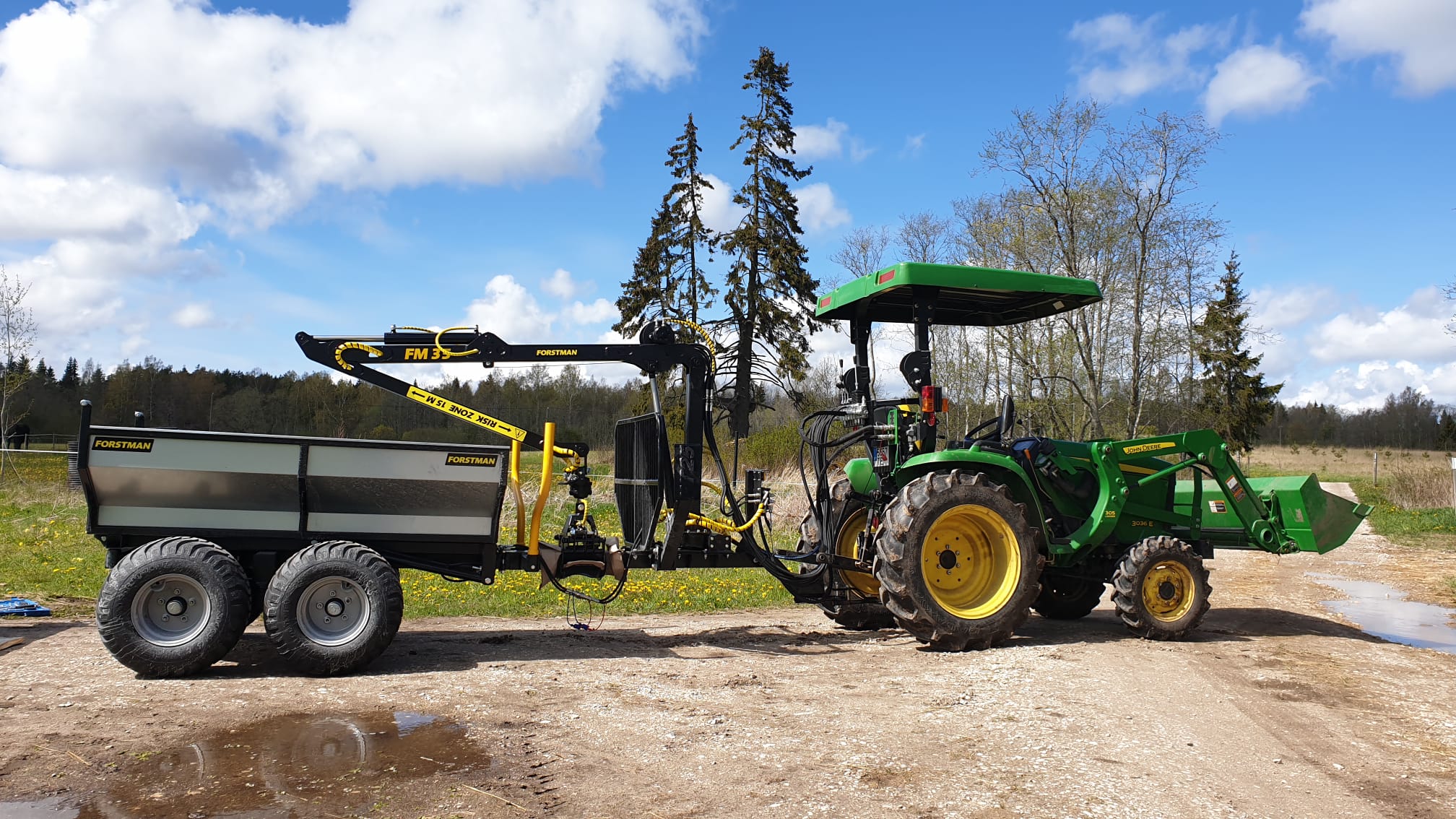

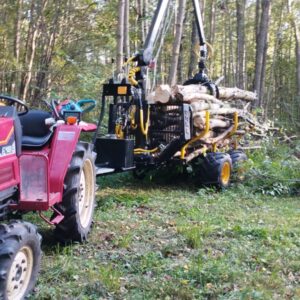

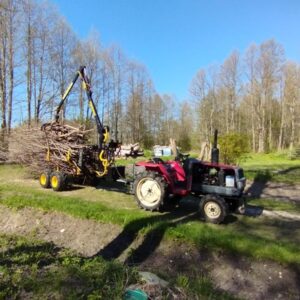

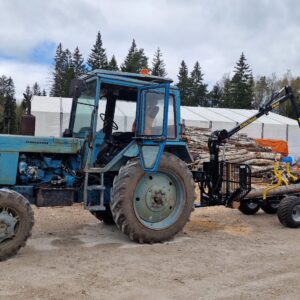

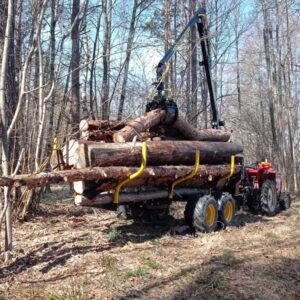

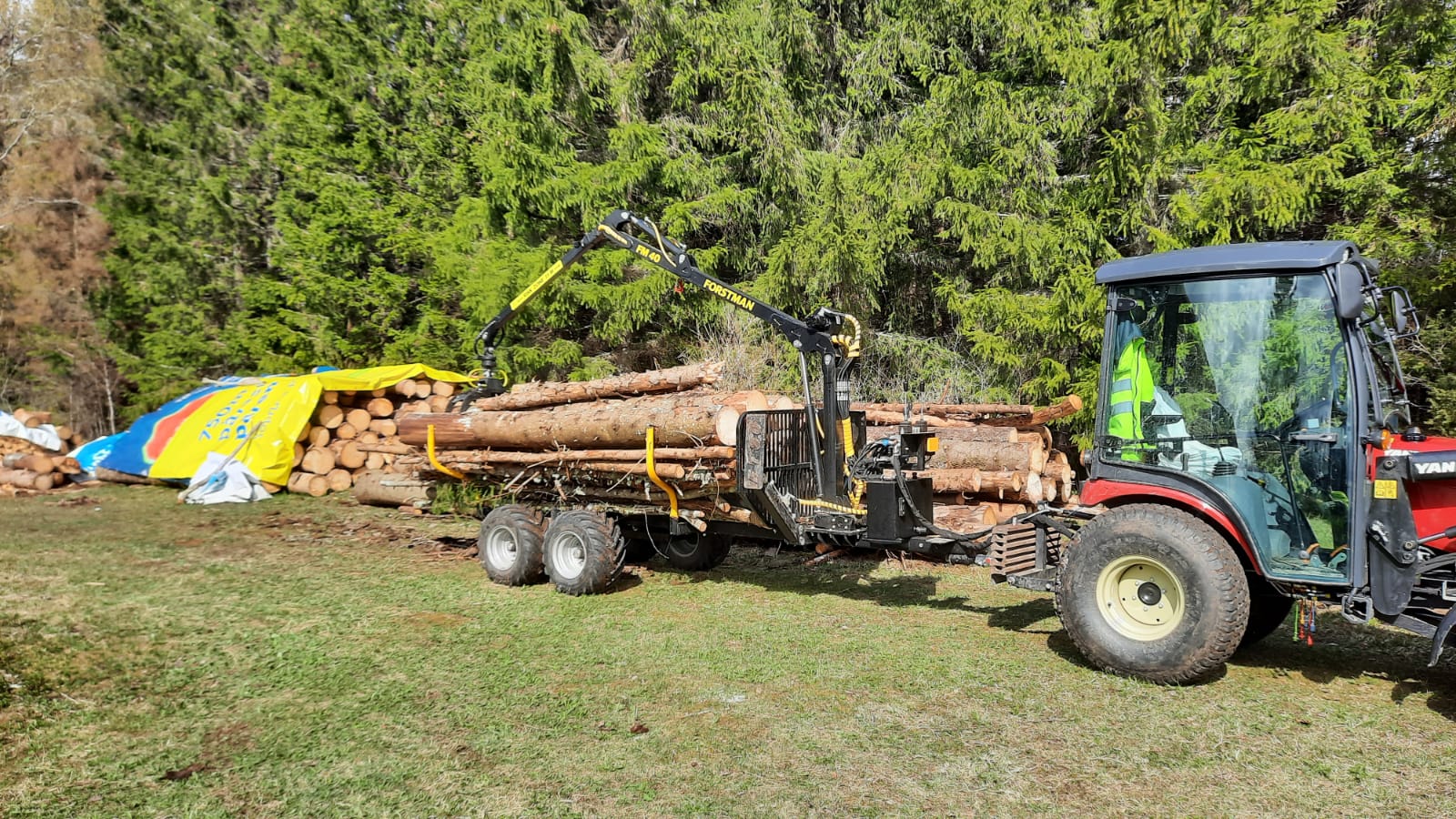

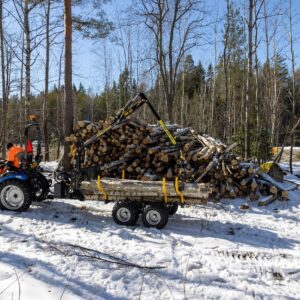

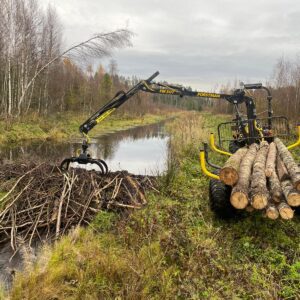

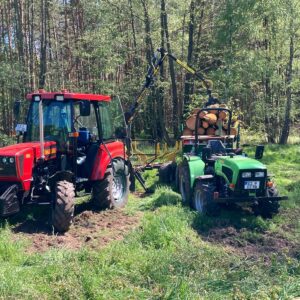

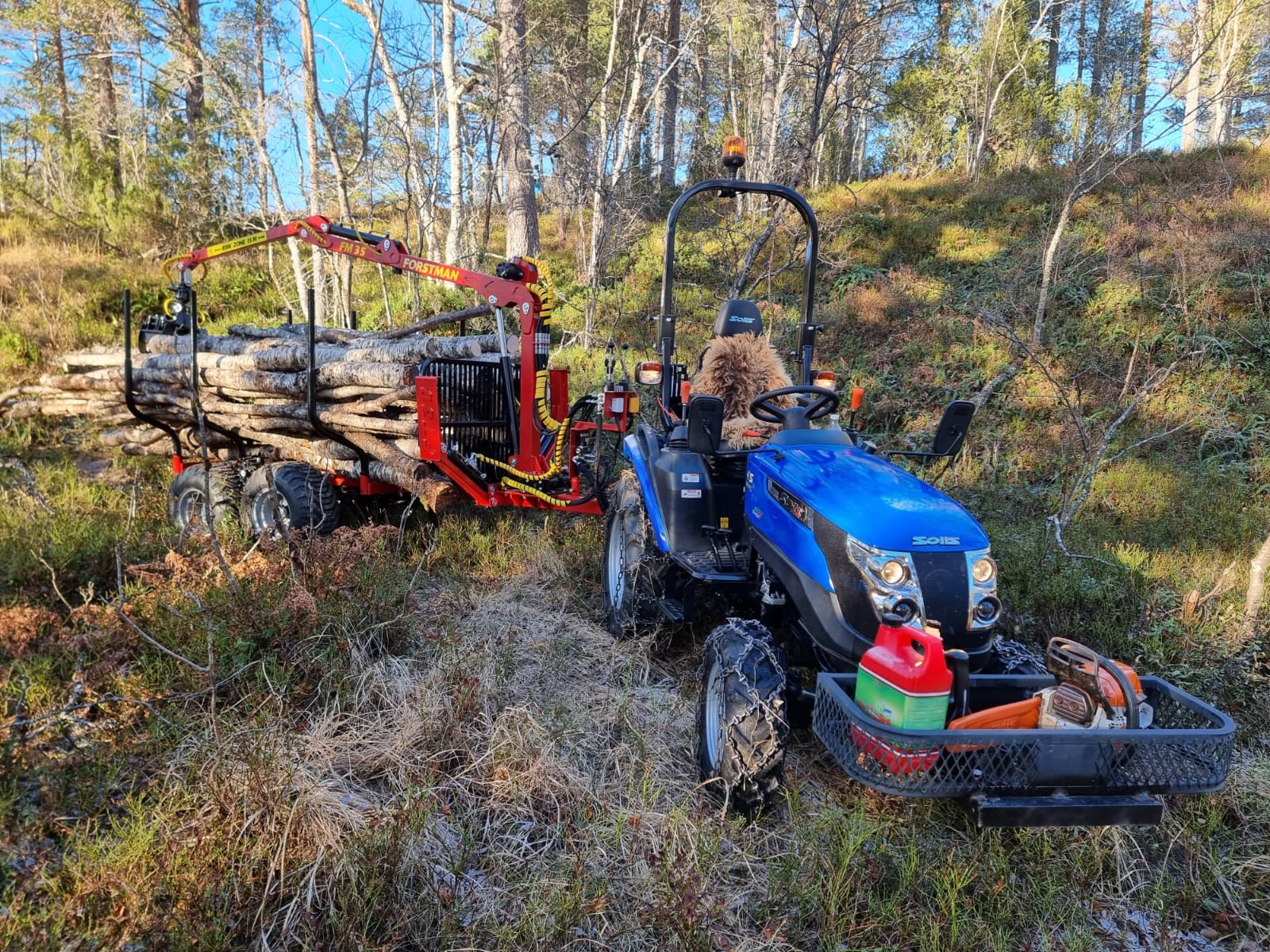

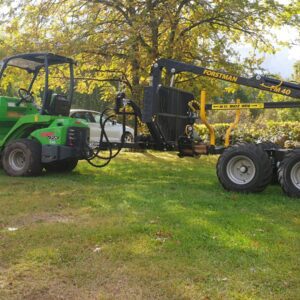

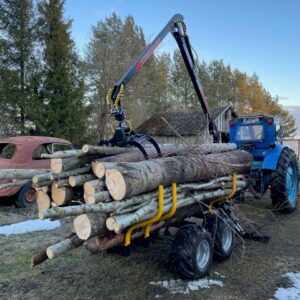

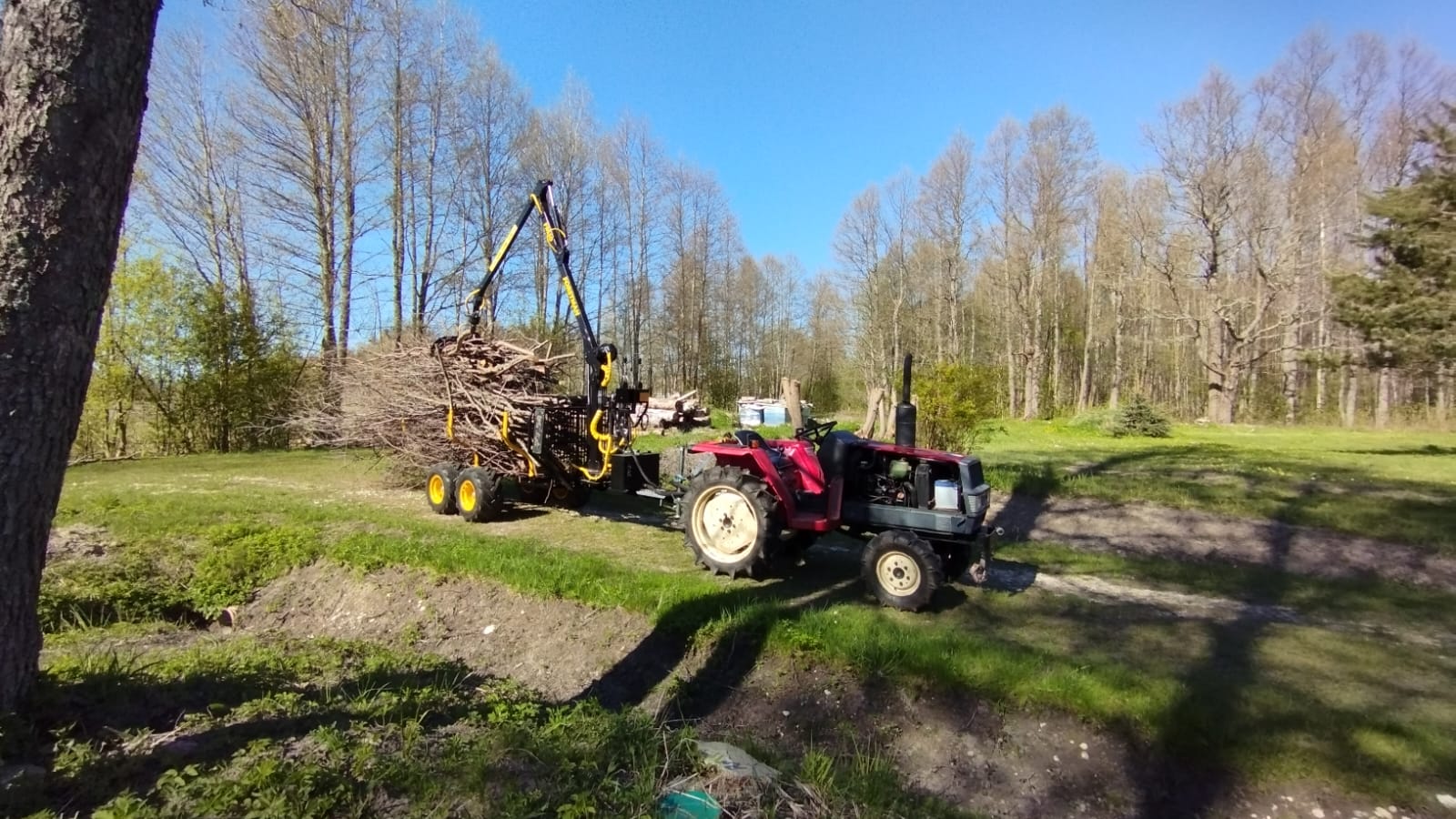

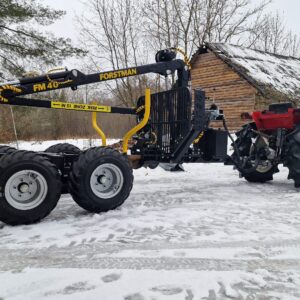

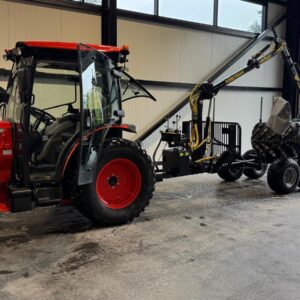

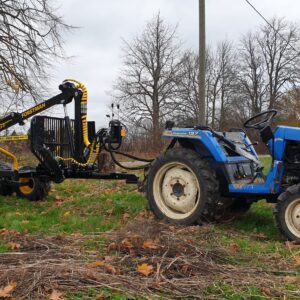

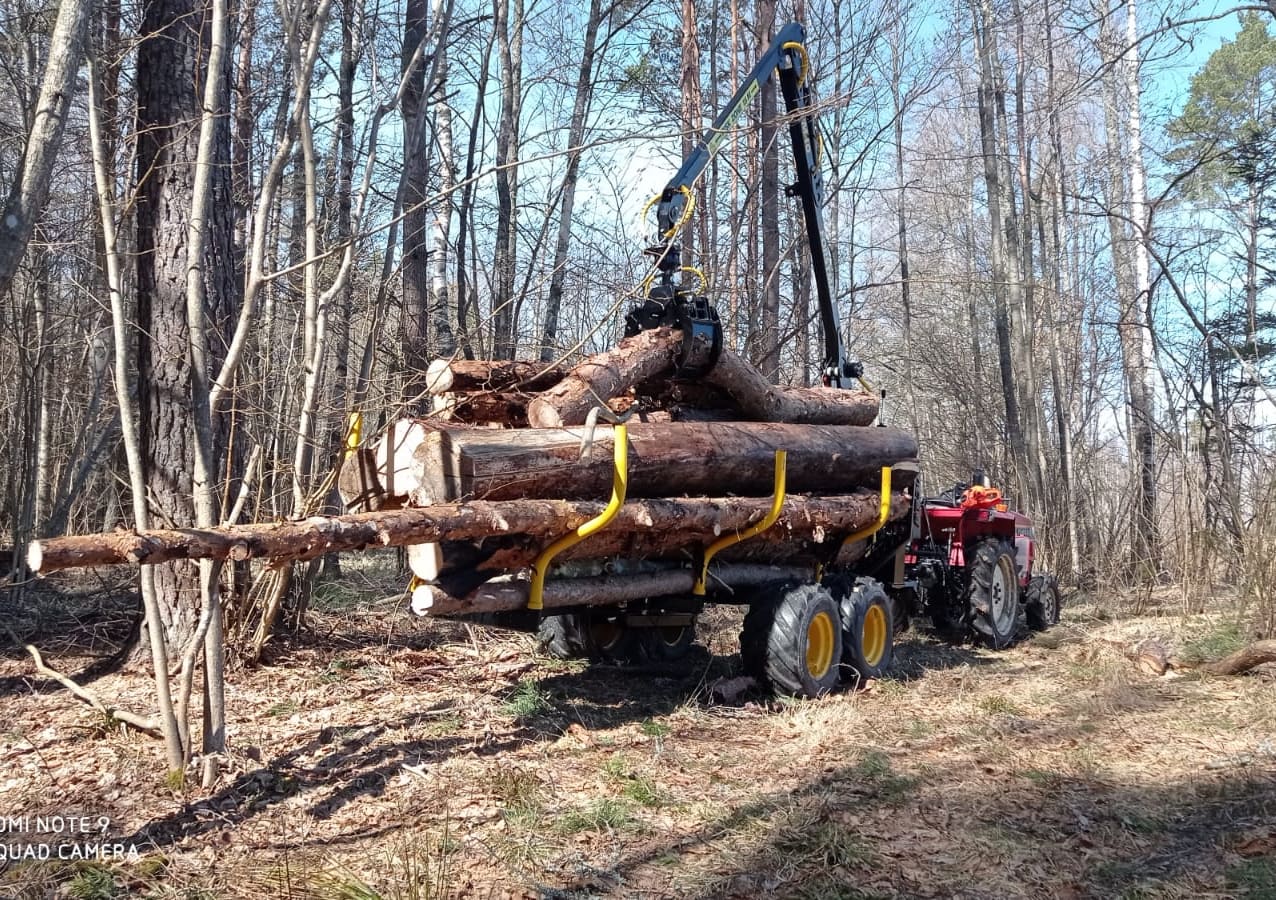

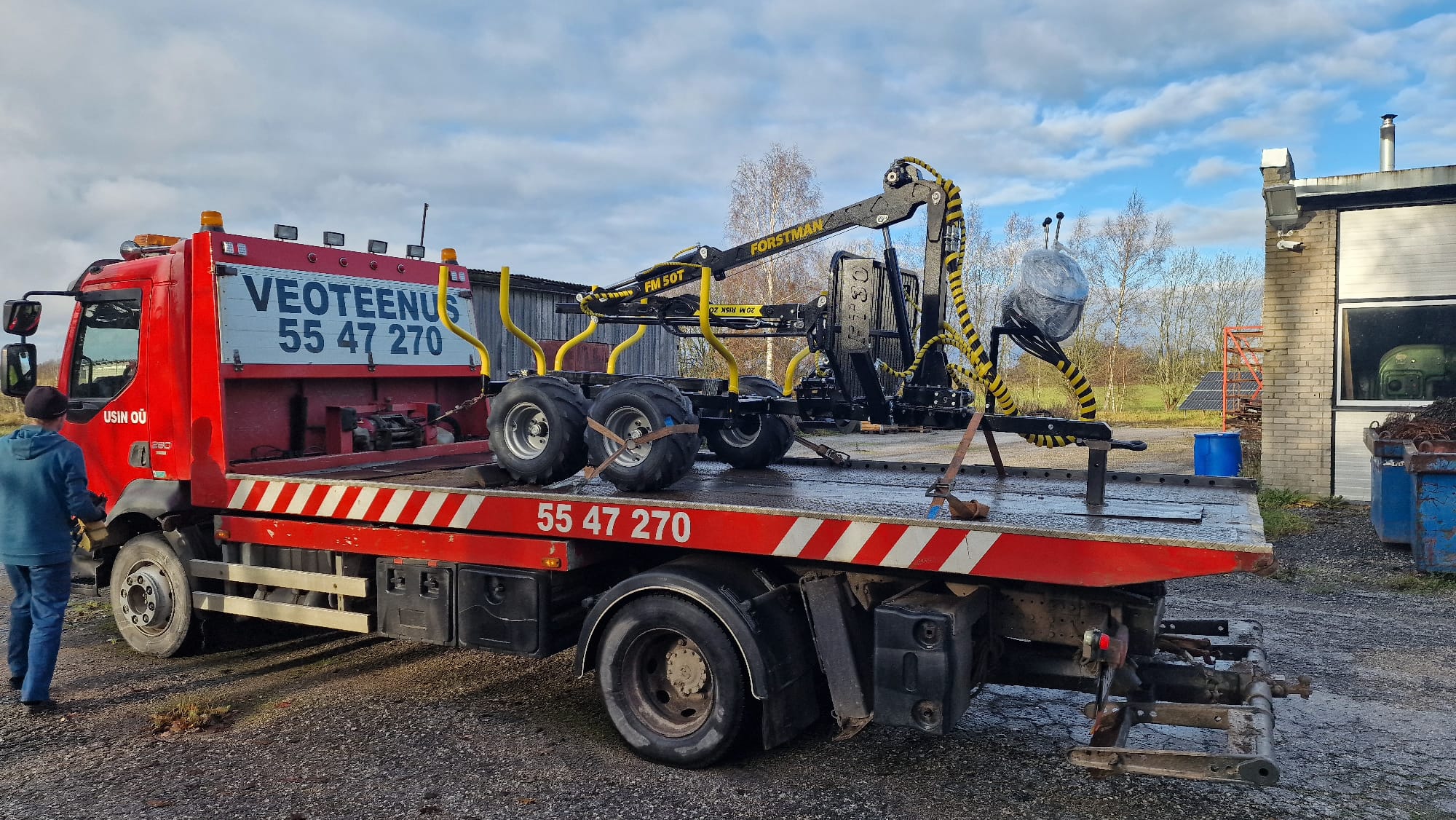

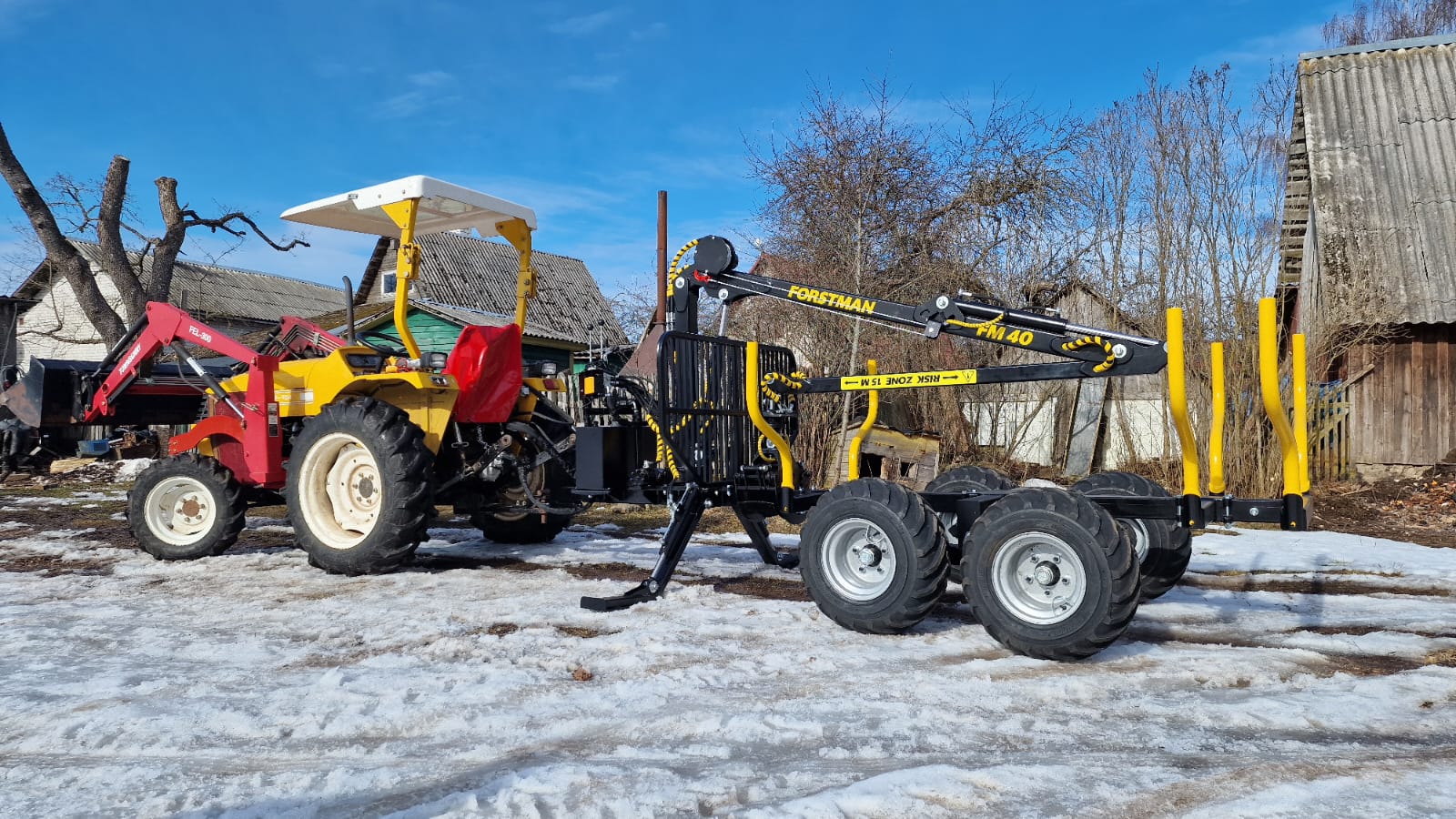

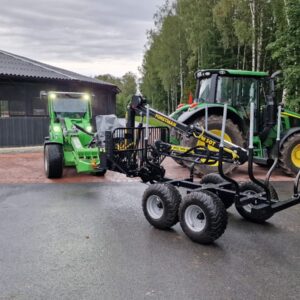

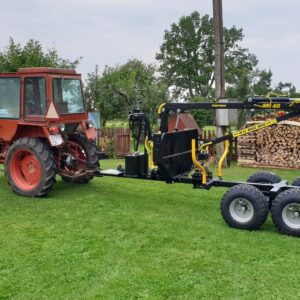

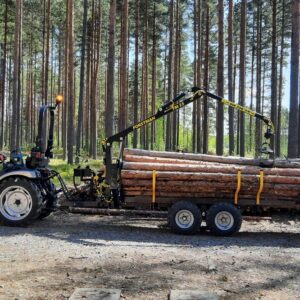

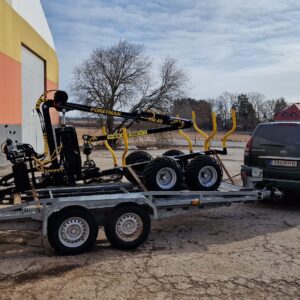

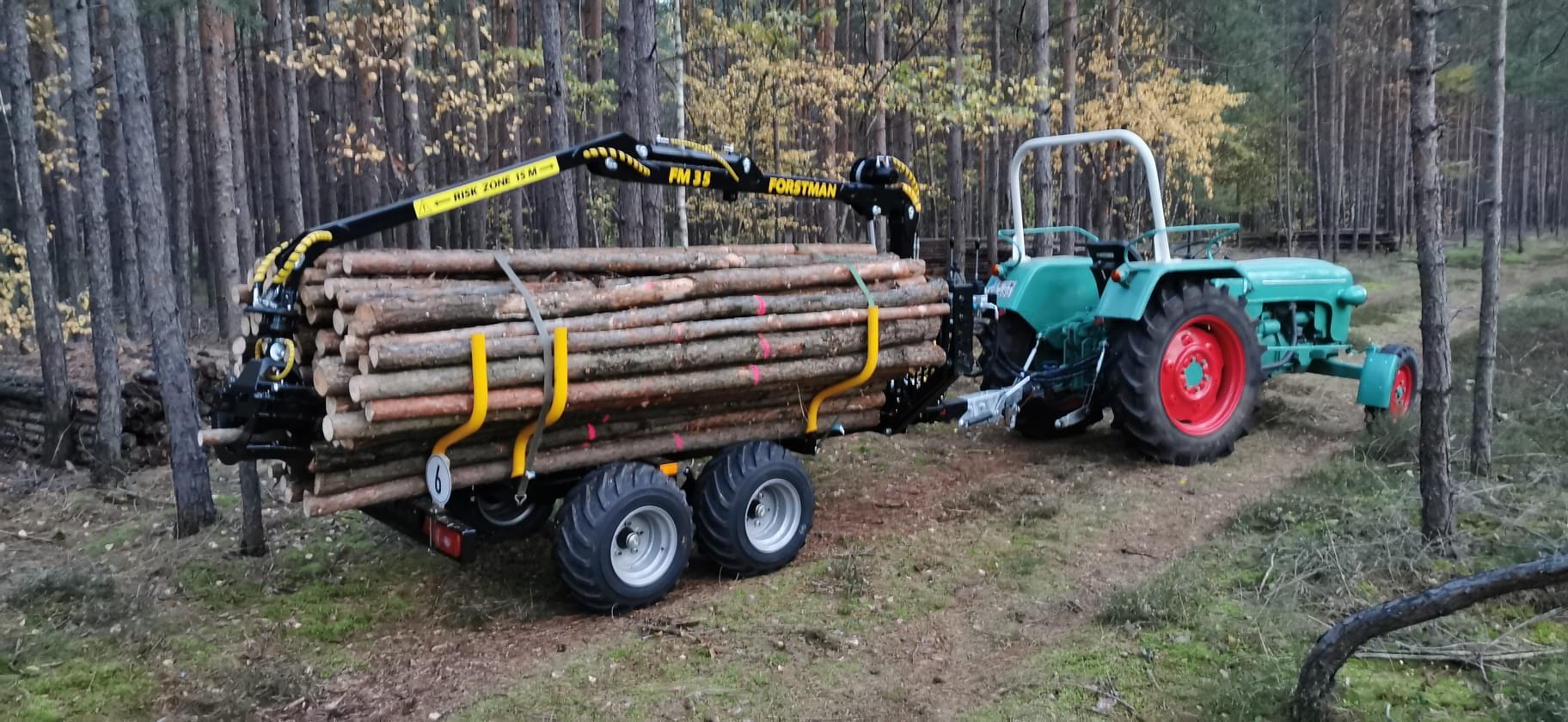

A Selection of Forstman Trailers Photos
A selection of images capturing the details, forms and textures of various machines. Exploring both function and design through photography.
Frequently asked questions
While more power is always better, the main principle for a lightweight trailer is to protect the forest ground. If the trailer is lightweight, the tractor should be as well. In our experience, the ideal tractor for our trailer has 25–35 hp, although it is also possible to operate with a 16 or 20 hp tractor.
We offer crane models with reaches of 3.5 m, 4 m, and 5.1 m with telescope. While a longer reach is generally better, the most popular model tend to be the FM40 or the 4 m version, which provides more than enough reach for most tasks. The FM35 is better suited for small tractors with 16–20 hp, while the FM50T or the 5.1 m reach model, is ideal for working more professional applications.
We offer the FT25, FT30, and FT35 trailer models. The FT25 is a narrow version, with a width of 1280–1480 mm; the FT30 ranges from 1580–1680 mm (the most common), and the FT35 is 1780 mm wide. Trailer width is important when maneuvering between trees or during thinning operations, so we recommend choosing a trailer that matches your tractor.
We strongly recommend using a PTO pump, as it keeps the oil separate from the tractor, allowing the tractor to run almost at idle. This saves fuel and reduces noise. For hydrostatic tractors, a PTO pump is highly recommended. With manual gearbox models, the tractor own can be used, but please keep in mind the oil capacity – typically the oil in the tractor’s rear axle is quite small amount and tends to overheat. Therefore a PTO pump is almost essential.
Yes and no. A W100 hydraulic winch is not mandatory, but once you try it, you won’t want to work without one. It is a remote-controlled hydraulic winch with 40 m × 5 mm wire and a pulling capacity of up to 1,300 kg. You can use it to pull logs closer to the trailer, lift them onto the trailer, handle fallen trees and windblown timber, or even pull yourself out of a ditch. The winch offers many advantages, though it is possible to work without one – if you really want to…
In most cases, no. However, if the soil is very wet or you are working on steep terrain, the 4WD system can be very useful. It operates with two 100 cc OMR motors, controlled by an electric solenoid and managed via a remote – no extra wires or buttons are needed for installation. The Robson rolls also function as a brake: once they are lowered, they prevent the tires from moving unless the control buttons are pressed.
This is completely up to the customer. We usually go through the setup step by step together, and if something seems unusual, we ask why that specific modification is needed. Custom-made options and modifications are part of our daily routine, but 90% of trailers are delivered with the standard setup, which has been well accepted on the market.
We offer a 12-month (1-year) warranty for our cranes and trailers. Hydraulic hoses, tires, stickers, and similar consumables are not covered by the warranty.
This is the most common and pressing question—and by asking it, you’ve already answered it yourself. For international deliveries, we require 100% prepayment before the order is processed and shipped. If the setup is completely custom, delivery times may be longer, and such details should be discussed before placing the order. Please keep in mind that the trailers are built and assembled according to the customer’s specifications, which take time. If you are looking for next-day delivery, then this product is not for you.
Generally, we prepare a price quote for the desired machine or machines, and the customer can then decide if it suits them. We use DSV Transport services in about 90% of cases, but other carriers are not excluded.
Yes, we have an eBay store and will soon be available on Amazon as well. Prices there are slightly higher due to platform fees, but all consumer protection and benefits provided by these marketplaces are guaranteed. Please note that in our online stores we only sell exact models or setups that are in stock for this purpose. Those setups cannot be changed and are sold as displayed in the store.
Not sure yet? Here are some YouTube videos
Youtube videos
“Power in Motion: Forstman Trailers in Action”
Here are some great examples of our machines in action. It’s always a pleasure to watch true masters at work. We would like to thank all our customers who take the time and effort to make and share these videos, allowing us to focus on production.
Forstman Trailers have been produced since 2001, when the very first model came to life. Since then, it has been a rollercoaster of highs and lows. But with the right products and people, everything is possible, and we are grateful for what we have achieved and where we are today. Of course, we continue to develop and invent new and improved options, and customer feedback is always highly appreciated.
There are currently around 800 Forstman Trailers in use worldwide, and the number is growing. We aim to reach the 1,000-unit milestone in the coming years, and you can help us get there. Choose a Forstman Trailer for your forestry work.
Still have questions? Take a look here before assembling your own setup.
So what is the most popular Forstman Trailer model?
This column shows the most popular setup, and it is clear that Model 4 is by far the favorite. If this setup isn’t right for you, you can create your own setup below with suitable options.
Here, you can put together your own setup and send it to us for review. We will get back to you with a quote shortly.
Handle your own timber and enjoy the efficiency
Take your forest work to the next level – with your own trailer you can transport logs easily, safely, and efficiently. Built for durability and convenience, the trailer makes handling timber straightforward so you can focus on the result – a job well done.
